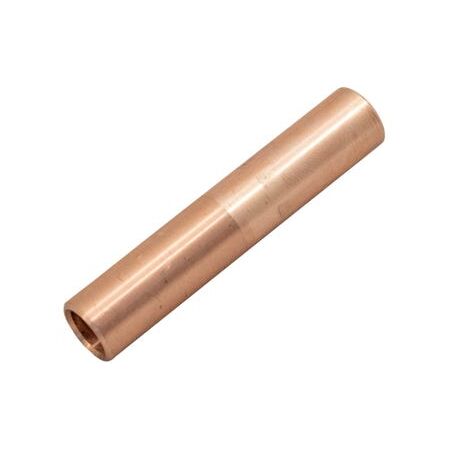

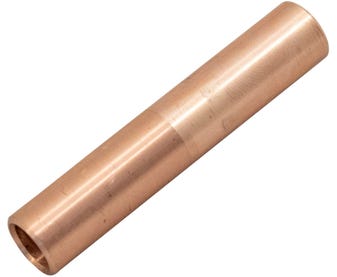

Copper Barrier Link 35mm2 | 99.95% Pure Copper | Moisture & Oil Barrier by Cabac
Copper barrier link with 35mm² conductor size and 99.95% pure copper—ideal for paper insulated cables and moisture or oil barrier applications. Built for reliable electrical connectivity, with durable and recyclable materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Barrier Link 35mm2
Brand: Cabac
SKU: CASB35
Alternatively Known As: Copper Barrier Link 35mm², Copper Cable Barrier Link, Copper Electrical Link
Technical Specifications
- Nominal Conductor Size: 35 mm²
- I.D. Size: 8.2 mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 p.p.m. Max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature Range: -55 to 100 °C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Tooling is interchangeable between Cable Accessories, Utilux and Burndy
- Dimensions (H x L x W): 8.2mm x 100mm x 35mm
- Weight: 0.1 kg
Key Features
- Designed for use with paper insulated cables or any situation where an impermeable barrier to oil or moisture is required
- Reducing links are barrier type as well
- Crimped with CABAC and MSS Power standard tooling copper dies
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and connection.
Applications
- Use with paper insulated cables
- Situations requiring an impermeable barrier to oil or moisture
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from 99.95% pure copper which is recyclable and environmentally friendly
- Durable and long-lasting reducing the need for frequent replacements
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Copper Barrier Link 35mm2 is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring moisture and oil barriers.
