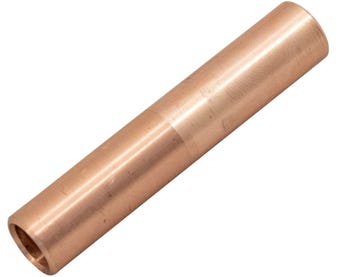

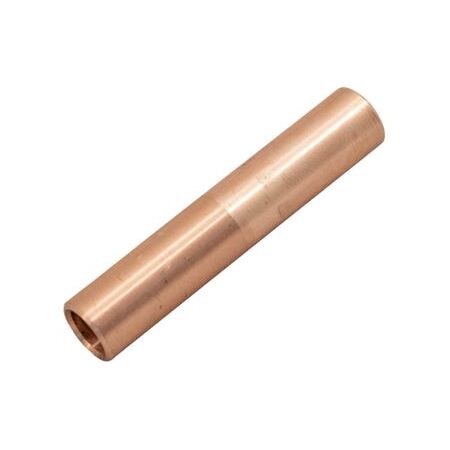

Copper Barrier Link 400mm² | 26.5mm I.D. | High Purity Copper | Fully Annealed by Cabac

BRAND: CABAC

SKU: CASB400

$121.80 List price: $152.30

+ −

30 Days Return Delivery Options

Copper barrier link with 26.5mm I.D. and high purity copper—ideal for paper insulated cables and moisture barriers. Built for reliable electrical connectivity, with fully annealed metal for durability.

Description

Product Name/Title: Copper Barrier Link 400mm2

Brand: Cabac

SKU: CASB400

Alternatively Known As: Copper Barrier Link 400mm², Copper Barrier Connector, Copper Cable Link

Technical Specifications

Nominal Conductor Size: 400 mm²
I.D. Size: 26.5 mm
Conductive Material: Copper 99.95% pure
Oxygen Content: 30 p.p.m. Max
Tensile Strength: 200 MPa
Ductile Rating: 40%
Final Metal State: Fully annealed
Operating Temperature Range: -55 to 100 °C
Total Conductivity: 99.7% IACS
Total Resistivity: 1.738 micro-ohm cm
Tooling is interchangeable between Cable Accessories, Utilux and Burndy
Dimensions (H x L x W): 10mm x 100mm x 50mm
Weight: 0.5 kg

Key Features

Designed for use with paper insulated cables or any situation where an impermeable barrier to oil or moisture is required
Reducing links are barrier type as well
Crimped with CABAC and MSS Power standard tooling copper dies

Professional Installation Requirements

Professional installation by a qualified electrician is recommended to ensure proper crimping and compliance with safety standards.

Applications

Use with paper insulated cables
Situations requiring an impermeable barrier to oil or moisture

Standards & Compliance

Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

High purity copper (99.95%) ensures efficient conductivity reducing energy loss
Durable and fully annealed metal state extends product life reducing waste

Warranty Information

Standard manufacturer warranty applies. Test reports available on request.

Available Now

The Cabac Copper Barrier Link 400mm2 is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable barrier links.
