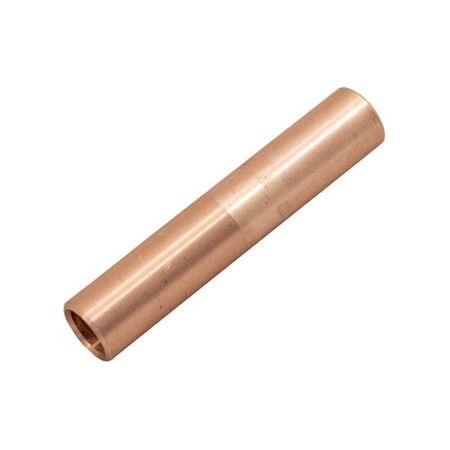

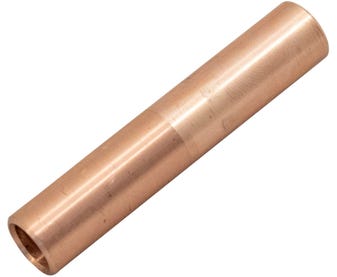

Copper Barrier Link 500mm² | 99.95% Pure Copper | 200 MPa Tensile Strength | -55°C to 100°C Operating Temp by Cabac
The Cabac Copper Barrier Link 500mm2 is designed for use with paper insulated cables or any application requiring an impermeable barrier to oil or moisture, ensuring reliable electrical connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Barrier Link 500mm2
Brand: Cabac
SKU: CASB500
Alternatively Known As: Copper Barrier Link 500mm², Copper Barrier Lug, Copper Cable Link, Barrier Link for Paper Insulated Cable
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 p.p.m. Max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature: -55°C to 100°C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Tooling Interchangeable with Cable Accessories, Utilux, and Burndy
- Dimensions (H x L x W): 10mm x 500mm x 50mm
- Weight: 0.5 kg
Key Features
- Made from 99.95% pure copper with oxygen content max 30 p.p.m.
- Tensile strength of 200 MPa and ductile rating of 40%
- Fully annealed final metal state
- Operating temperature range from -55°C to 100°C
- Total conductivity of 99.7% IACS and resistivity of 1.738 micro-ohm cm
- Tooling interchangeable with Cable Accessories, Utilux, and Burndy
- Accepted by multiple Australian electricity and rail authorities
Professional Installation Requirements
- Installation should be performed by a qualified electrical professional using appropriate crimping tools to avoid damage to the barrier link.
Applications
- Use with paper insulated cables
- Situations requiring an impermeable barrier to oil or moisture
- Electrical and power connectivity applications
Standards & Compliance
- Complies with AS/NZS 4325 Part 1
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable and long-lasting material reduces need for frequent replacements
Warranty Information
Warranty details available upon request; standard manufacturer warranty applies.
Available Now
The Cabac Copper Barrier Link 500mm2 is available for immediate purchase, ideal for electrical and power connectivity applications requiring moisture and oil impermeable barriers.
