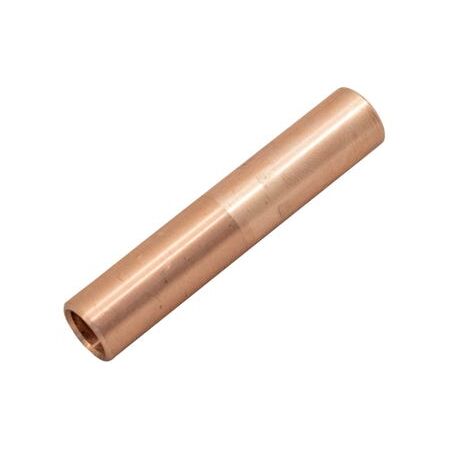

Copper Barrier Link 500mm2 Cabac
Cabac copper link, barrier-type, crimp. Ideal for joining copper conductors end-to-end.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 p.p.m. Max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature: -55°C to 100°C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Tooling Interchangeable with Cable Accessories, Utilux, and Burndy
- Dimensions (H x L x W): 10mm x 500mm x 50mm
- Weight: 0.5 kg
Key Features
- Made from 99.95% pure copper with oxygen content max 30 p.p.m.
- Tensile strength of 200 MPa and ductile rating of 40%
- Fully annealed final metal state
- Operating temperature range from -55°C to 100°C
- Total conductivity of 99.7% IACS and resistivity of 1.738 micro-ohm cm
- Tooling interchangeable with Cable Accessories, Utilux, and Burndy
- Accepted by multiple Australian electricity and rail authorities
Professional Installation Requirements
- Installation should be performed by a qualified electrical professional using appropriate crimping tools to avoid damage to the barrier link.
Applications
- Use with paper insulated cables
- Situations requiring an impermeable barrier to oil or moisture
- Electrical and power connectivity applications
Standards & Compliance
- Complies with AS/NZS 4325 Part 1
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable and long-lasting material reduces need for frequent replacements
Warranty Information
Warranty details available upon request; standard manufacturer warranty applies.
Available Now
The Cabac Copper Barrier Link 500mm2 is available for immediate purchase, ideal for electrical and power connectivity applications requiring moisture and oil impermeable barriers.
