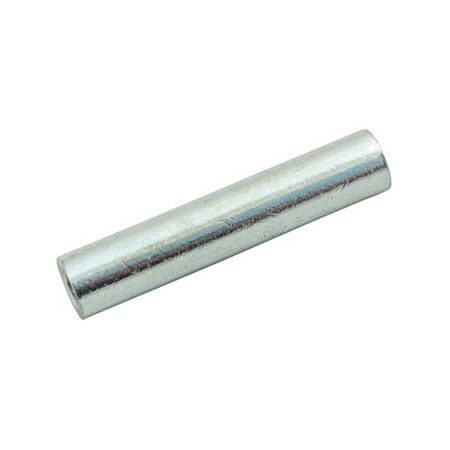

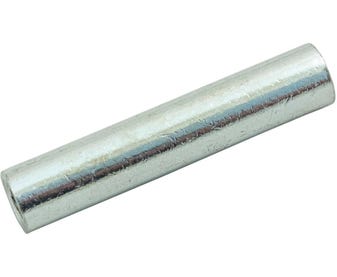

Copper Barrier Link 50mm2 | 99.95% Pure Copper | Moisture Barrier by Cabac

BRAND: CABAC

SKU: CASB50

$13.60 List price: $16.90

+ −

30 Days Return Delivery Options

Copper barrier link with 50mm² nominal conductor and 99.95% pure copper—ideal for paper insulated cables and moisture barrier applications. Built for reliable electrical connectivity, with high conductivity and durable design.

Description

Product Name/Title: Copper Barrier Link 50mm2

Brand: Cabac

SKU: CASB50

Alternatively Known As: Copper Barrier Link 50mm², Copper Barrier Lug 50mm2, Copper Cable Link 50mm2

Technical Specifications

Nominal Conductor: 50 mm²
I.D. Size: 9.5 mm
Conductive Material: Copper 99.95% pure
Oxygen Content: 30 p.p.m. Max
Tensile Strength: 200 MPa
Ductile Rating: 40%
Final Metal State: Fully annealed
Operating Temperature: -55 to 100 °C
Total Conductivity: 99.7% IACS
Total Resistivity: 1.738 micro-ohm cm
Tooling is interchangeable between Cable Accessories, Utilux and Burndy
Dimensions (H x L x W): 10mm x 100mm x 50mm
Weight: 0.1 kg

Key Features

Designed for use with paper insulated cables or any situation where an impermeable barrier to oil or moisture is required
Reducing links are barrier type as well
Crimped with CABAC and MSS Power standard tooling copper dies

Professional Installation Requirements

Professional installation by a qualified electrician is recommended to ensure proper crimping and compliance with safety standards.

Applications

Use with paper insulated cables
Situations requiring an impermeable barrier to oil or moisture

Standards & Compliance

Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

High purity copper (99.95%) ensures efficient conductivity reducing energy loss
Durable and fully annealed metal state extends product life reducing waste

Warranty Information

Warranty information available upon request from the manufacturer.

Available Now

The Cabac Copper Barrier Link 50mm2 is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable barrier links.
