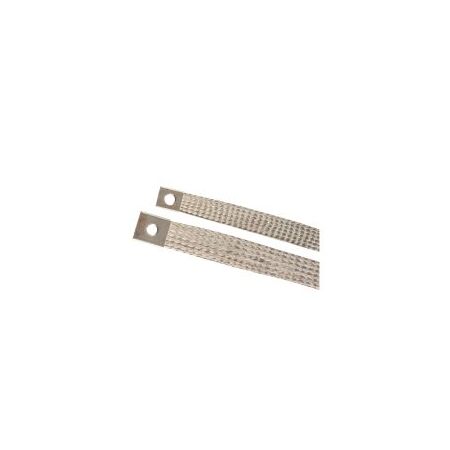

Copper Braid 450A 450mm M12 Studs Cabac
Cabac Copper Braid features 450A rating, 450mm length, and M12 stud ends with seamless copper ferrules. Ideal for flexible earth and switch bonding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Flexible Copper Earth Braid, Copper Bonding Braid, Switchboard Earth Bond, Flexible Copper Link
Technical Specifications
- Current Rating: 450A nominal
- Indoor Derating: Generally reduce nominal rating by 20% for indoor applications
- Length: 450mm between first hole centres
- Stud Size: M12 with approximately 13mm clearance hole
- Braid Width: Approximately 30mm
- Number of Braids: 3
- Material: Copper braid with seamless copper ferrules
- Ferrule Type: Rectangular seamless ferrules
- Packaging Unit: 1 each
- Dimensions (H x L x W): 5mm x 450mm x 30mm
- Weight: 0.45 kg
Key Features
- 450A nominal current rating
- Flexible three-braid copper construction
- M12 stud ends for bolted electrical connections
- Seamless copper ferrules provide robust terminations
- Designed to accommodate movement, vibration and thermal expansion
- Suitable for flexible earth and switchboard bonding applications
Professional Installation Requirements
- Installation and connection should be performed by a licensed electrician in accordance with the equipment manufacturer's instructions and applicable electrical installation requirements. Confirm the required fault-current rating, connection torque and derating conditions before use.
Applications
- Switchboard door and panel earth bonding
- Flexible earth connections
- Electrical disconnects and switch handle grounds
- Bonding between equipment sections subject to movement or vibration
- Electrical systems requiring flexible high-current copper links
Standards & Compliance
- Applicable installation requirements under AS/NZS 3000:2018 Wiring Rules, including earthing and equipotential bonding provisions
Environmental Benefits
- Copper is highly recyclable at end of service life
- Durable copper construction can reduce replacement frequency and material waste
- Flexible design helps accommodate vibration and thermal movement, supporting longer connection service life
Warranty Information
Covered by CABAC's applicable warranty terms and Australian Consumer Law. No product-specific warranty duration was identified for this copper braid.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock.
