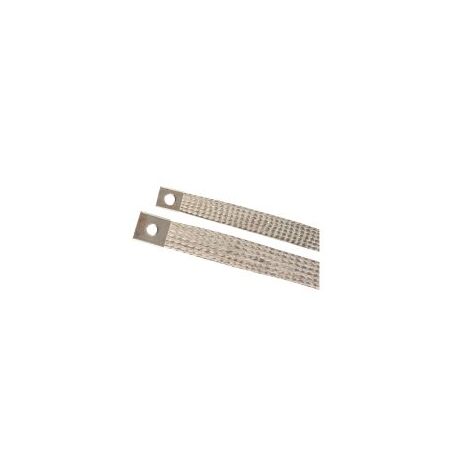

Copper Braid 450A 500mm M16 Studs Cabac
Cabac Copper Braid features 450A rating, 500mm length, and M16 stud ends with seamless copper ferrules. Ideal for flexible earth and switch bonding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 450A Copper Braid, Flexible Earthing Braid, Copper Bonding Strap, Switchboard Bonding Braid
Technical Specifications
- Part Number: CAB450A-500M16
- Current Rating: 450A nominal
- Length: 500mm between ferrule hole centres
- Stud Size: M16 nominal
- Hole Clearance: Approximately 16.5–17mm
- Construction: Flexible braided copper conductor
- Ferrules: Seamless pure copper, plated finish
- Braid Finish: Tinned copper
- Braid Configuration: Three-braid construction
- Current Rating Note: Nominal rating depends on environment, installation and ventilation; indoor applications may require derating
- Dimensions (H x L x W): 36mm x 500mm x 30mm
- Weight: 0.7 kg
Key Features
- 450A nominal current rating
- 500mm flexible braid length
- M16 clearance holes for high-current bonding connections
- Seamless copper ferrules formed into rectangular end connections
- Tinned copper braid with plated ferrules
- Flexible construction accommodates vibration and movement
- Suitable for earth, switchboard and disconnect bonding applications
Professional Installation Requirements
- Installation should be performed by a licensed electrician or suitably qualified electrical worker in accordance with the applicable installation requirements of AS/NZS 3000. Confirm conductor sizing, connection hardware, tightening torque and environmental derating before use.
Applications
- Flexible earth bonding
- Switchboard and electrical enclosure bonding
- Disconnect and switch-handle grounding
- Bonding across hinged or movable panels
- Vibration isolation and electrical continuity across moving equipment
- Industrial and commercial electrical installations
Standards & Compliance
- AS/NZS 3000:2018 — applicable wiring rules for earthing and bonding installations; specific product certification is not stated by CABAC
Environmental Benefits
- Copper components are recyclable at end of service life
- Flexible construction can accommodate vibration and movement, helping reduce premature connection failure and replacement waste
- Durable copper braid and ferrule construction supports extended service life
Warranty Information
CABAC terms and conditions provide a one-year warranty period from the date of supply for defective goods, subject to correct installation, use and the applicable terms. Manufacturer warranty terms and Australian Consumer Law rights also apply.
Available Now
Available through CABAC and authorised Australian electrical distributors; availability may vary and should be confirmed with the supplier.
