Trade Discount 17%

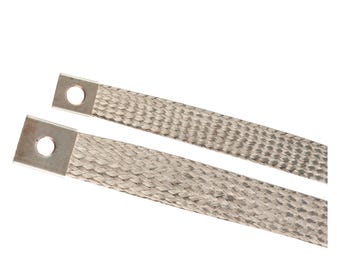

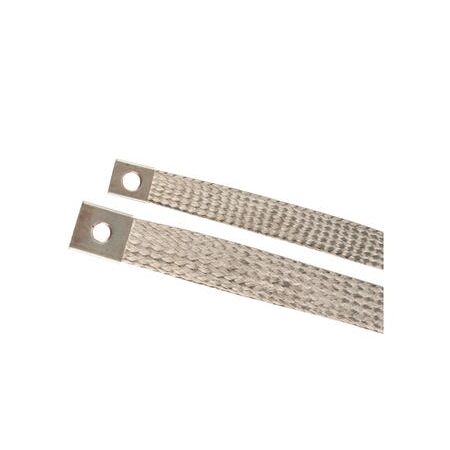

Copper Braid 450Amp | 750mm Long | M12 Studs | Flexible Design & Vibration Absorption by Cabac
The 450Amp Copper Braid 750mm Long with M12 Studs by Cabac is a highly flexible electrical lead designed for disconnects and switch handle grounds, featuring seamless pure copper ferrules and vibration absorption capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 450Amp Copper Braid 750mm Long M12 Studs
Brand: Cabac
SKU: CAB450A-750M12
Alternatively Known As: Copper grounding braid, flexible copper braid, copper grounding strap, electrical copper braid, copper braid cable
Technical Specifications
- Current rating: 450 Amps
- Length: 750 mm
- Stud size: M12
- Braid composition: 3x38 sq. mm copper braids
- Ferrules: Seamless pure copper, rectangular shape
- Dimensions (H x L x W): 10mm x 750mm x 50mm
- Weight: 0.5 kg
Key Features
- Extremely flexible lead suitable for disconnects and switch handle grounds
- Seamless pure copper ferrules with a rectangular shape on each end
- Designed to absorb vibration and accommodate linear expansion/contraction
- Special ends and braid types available upon request
- 450A capacity with 3x38 sq. mm braids
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and optimal performance.
Applications
- Electrical disconnects
- Switch handle grounds
- Absorbing vibration in electrical connections
- Taking up linear expansion and contraction in electrical systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from pure copper which is recyclable and sustainable
- Durable design reduces the need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The 450Amp Copper Braid 750mm Long M12 Studs by Cabac is available for immediate purchase, ideal for electrical grounding and connectivity applications.
