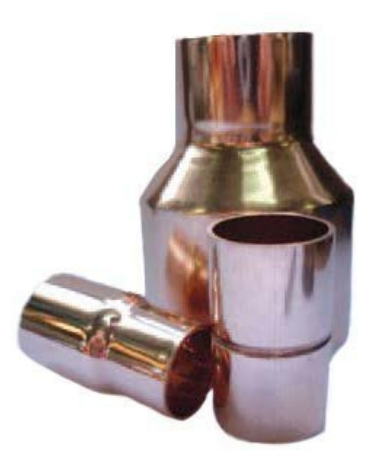

Copper Bushing 1-1/8 OD X 5/8 ID | Rated for CO2 60 Bar | ISO9001 Certified | by Aspen Pumps
This Copper Bushing features a 1-1/8 inch outer diameter and 5/8 inch inner diameter, making it ideal for HVAC and refrigeration systems requiring high-pressure fittings. Rated for CO2 60 Bar and compatible with R-410A refrigerants, it is manufactured to exceed ISO/AS 5149.2 standards, ensuring durability and reliability in industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Bushing 1-1/8 OD X 5/8 ID | Rated for CO2 60 Bar | ISO9001 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 100-1810-HP60
Alternatively Known As: Copper Bushing, Copper Reducer Bush, HP60 Copper Fitting, R-410A Copper Bush
Technical Specifications
- Outer Diameter (OD): 1-1/8 inch (approx. 29 mm)
- Inner Diameter (ID): 5/8 inch (approx. 15 mm)
- Pressure Rating: CO2 60 Bar
- Compatible Refrigerants: R-410A
- Manufactured to exceed ISO/AS 5149.2 standards
- Produced in ISO9001 accredited facility
- Batch verification burst tested for quality assurance
- Recommended 15% silver solder for brazing in high-pressure applications
- Dimensions (H x L x W): 15mm x 29mm x 29mm
- Weight: 0.1 kg
Key Features
- Rated for CO2 60 Bar and R-410A refrigerants
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked fittings for safety with R-410A and HP-60 ratings
- Designed to remove stress and fatigue focus points
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing; ensure pipework design avoids mechanical and thermal stress.
Applications
- HVAC systems requiring high-pressure copper fittings
- Refrigeration systems using R-410A refrigerant
- Industrial and commercial copper piping installations
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Durable copper construction reduces need for frequent replacements, minimizing waste
- Supports use in energy-efficient HVAC and refrigeration systems
Warranty Information
Warranty details available upon request; typically covered under manufacturer’s standard warranty for defects.
Available Now
Available for immediate purchase, ideal for HVAC and refrigeration system installations requiring high-pressure copper fittings.
