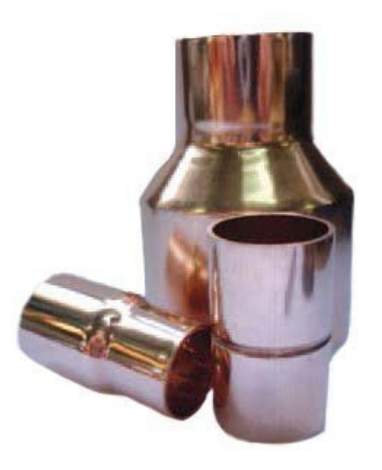

Copper Bushing | 1-5/8 OD x 1-3/8 ID | CO2 60 Bar Rated | R-410A Compatible | by Aspen Pumps
This Copper Bushing is designed for HVAC and refrigeration systems, featuring a 1-5/8 inch outer diameter and 1-3/8 inch inner diameter. Rated for CO2 60 Bar and compatible with R-410A refrigerants, it exceeds ISO/AS 5149.2 standards, ensuring reliability and safety in high-pressure applications. Ideal for professional installations, it supports energy-efficient systems while providing long service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Bushing | 1-5/8 OD x 1-3/8 ID | CO2 60 Bar Rated | R-410A Compatible | by Aspen Pumps
Brand: Aspen Pumps
SKU: 100-2622-HP60
Alternatively Known As: Copper Bushing, Copper Reducer Bush, HP60 Copper Fitting, R-410A Copper Bush
Technical Specifications
- Outer Diameter (OD): 1-5/8 inches (approx. 41 mm)
- Inner Diameter (ID): 1-3/8 inches (approx. 35 mm)
- Pressure Rating: CO2 60 Bar
- Compatible Refrigerants: R-410A
- Manufactured to exceed ISO/AS 5149.2 standards
- Produced in ISO9001 accredited facility
- Batch verification burst tested for quality assurance
- Recommended 15% silver solder for brazing in high-pressure applications
- Dimensions (H x L x W): 41mm x 41mm x 41mm
- Weight: 0.1 kg
Key Features
- Rated for CO2 60 Bar and R-410A refrigerants
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked for R-410A and HP-60 rating for safety
- Designed to remove stress and fatigue focus points
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology. Use 15% silver solder for brazing in high-pressure systems. Ensure pipework design minimizes mechanical and thermal stress.
Applications
- HVAC systems requiring high-pressure copper fittings
- Refrigeration systems using R-410A refrigerant
- Industrial and commercial copper piping installations
Standards & Compliance
- Complies with AS/NZS 5149.2 - Refrigerating systems - Safety and environmental requirements
Environmental Benefits
- Supports use in energy-efficient HVAC and refrigeration systems
- Manufactured to high standards reducing waste and ensuring long service life
Warranty Information
Warranty details available upon request from Aspen Pumps, typically covering manufacturing defects.
Available Now
Available for immediate purchase, ideal for HVAC and refrigeration system installations requiring high-pressure copper fittings.
