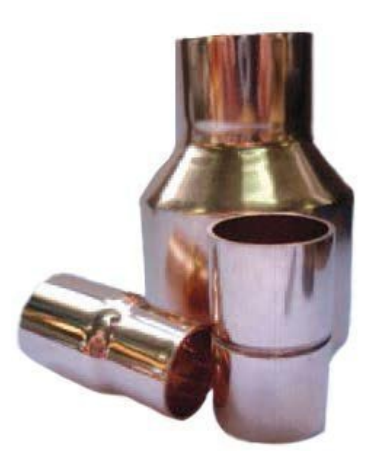

Copper Bushing 2-5/8 OD X 1-5/8 ID | ISO/AS 5149.2 Compliant | R-410A & HP-60 Compatible | by Aspen Pumps

BRAND: Aspen Pumps
SKU: 100-4226
$27.20 List price: $32.90
+ −
30 Days Return Delivery Options
The Copper Bushing 2-5/8 OD X 1-5/8 ID is designed for HVAC systems requiring high-pressure copper fittings. Manufactured to exceed ISO/AS 5149.2 standards, it ensures durability and reliability in refrigeration applications. Ideal for professional installations, this bushing minimizes mechanical and thermal stress, making it a perfect choice for R-410A and HP-60 refrigerants.

Product Name/Title: Copper Bushing 2-5/8 OD X 1-5/8 ID | ISO/AS 5149.2 Compliant | R-410A & HP-60 Compatible | by Aspen Pumps

Brand: Aspen Pumps

SKU: 100-4226

Alternatively Known As: Copper Bushing, Copper Reducer Bush, Copper Pipe Bush, HVAC Copper Fitting

Technical Specifications
  • Outer Diameter (OD): 2-5/8 inches (approximately 67 mm)
  • Inner Diameter (ID): 1-5/8 inches (approximately 41 mm)
  • Compatible with R-410A and HP-60 refrigerants
  • Manufactured to exceed ISO/AS 5149.2 standards
  • Passed burst testing after brazing
  • Recommended 15% silver solder for brazing in high-pressure applications
  • Designed to minimize mechanical and thermal stress
  • Dimensions (H x L x W): 30mm x 67mm x 67mm
  • Weight: 0.1 kg
Key Features
  • Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
  • Complies with CE and UL certifications
  • Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification and burst testing
  • Marked for R-410A and HP-60 refrigerant safety
  • Designed to remove stress and fatigue focus points for durability
Professional Installation Requirements
  • Installation should be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing; ensure pipework design avoids mechanical and thermal stress.
Applications
  • HVAC systems requiring high-pressure copper fittings
  • Refrigeration systems using R-410A and HP-60 refrigerants
  • Industrial and commercial copper piping installations
Standards & Compliance
  • Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
  • Manufactured to high standards reducing waste and ensuring long service life
  • Supports efficient HVAC systems that reduce energy consumption
Warranty Information

Warranty details available upon request; product manufactured under ISO9001 quality standards ensuring reliability.

Available Now

Available for immediate purchase, ideal for HVAC and refrigeration system installations requiring high-quality copper fittings.
