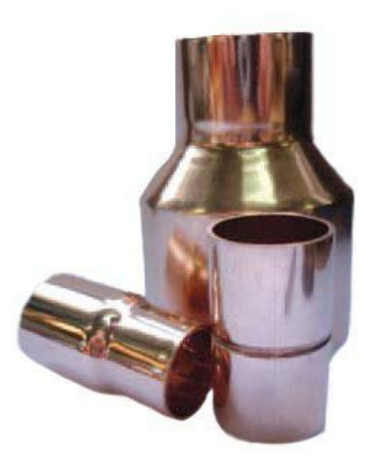

Copper Bushing HP60 | 1-1/8 ID & 5/8 ID | CO2 60 Bar Rated | R-410A Compatible | by Aspen Pumps
The Copper Bushing HP60 features dual inner diameters of 1-1/8 inch and 5/8 inch, making it ideal for HVAC and refrigeration systems requiring high-pressure copper fittings. Designed to exceed ISO/AS 5149.2 standards, this fitting is compatible with R-410A refrigerant and is manufactured in an ISO9001 accredited facility, ensuring reliability and safety in industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Bushing HP60 | 1-1/8 ID & 5/8 ID | CO2 60 Bar Rated | R-410A Compatible | by Aspen Pumps
Brand: Aspen Pumps
SKU: 101-1810-HP60
Alternatively Known As: Copper Bushing, Copper Reducer Bush, HP60 Copper Fitting, R-410A Copper Bush
Technical Specifications
- Inner Diameter 1: 1-1/8 inch
- Inner Diameter 2: 5/8 inch
- Pressure Rating: CO2 60 Bar
- Refrigerant Compatibility: R-410A
- Manufactured to exceed ISO/AS 5149.2 standards
- Produced in ISO9001 accredited facility
- Batch verification burst tested
- Recommended 15% silver solder for brazing in high pressure applications
- Dimensions (H x L x W): 20mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Rated for CO2 60 Bar and R-410A refrigerants
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Manufactured in ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked for HP-60 and R-410A rating for safety
- Designed to remove stress and fatigue focus points
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing; ensure mechanical and thermal stress is avoided in pipework design.
Applications
- HVAC systems requiring high pressure copper fittings
- Refrigeration systems using R-410A refrigerant
- Industrial and commercial copper piping installations
Standards & Compliance
- Complies with AS/NZS 5149.2 - Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- Manufactured to high standards reducing waste and ensuring long service life
- Supports use in energy-efficient HVAC and refrigeration systems
Warranty Information
Warranty details available upon request from Aspen Pumps; typically includes manufacturing defect coverage.
Available Now
Available for immediate purchase, ideal for HVAC and refrigeration high pressure copper fitting applications.
