Trade Discount 17%

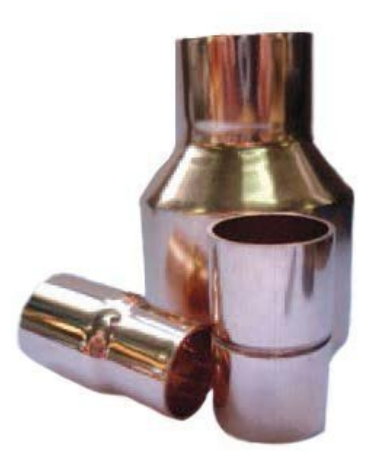

Copper Bushing HP60 | 1-3/8 OD & 7/8 ID | CO2 60 Bar Rated | by Aspen Pumps
The Copper Bushing HP60 is designed for high-pressure HVAC and refrigeration systems, featuring a robust 1-3/8 inch outer diameter and 7/8 inch inner diameter. Rated for CO2 at 60 Bar and compatible with R-410A refrigerants, this fitting is manufactured to exceed ISO/AS 5149.2 standards, ensuring reliability and safety in industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Bushing HP60 | 1-3/8 OD & 7/8 ID | CO2 60 Bar Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: 100-2214-HP60
Alternatively Known As: Copper Bushing, Copper Sleeve, HP60 Copper Fitting, High Pressure Copper Bush
Technical Specifications
- Outer Diameter (OD): 1-3/8 inch
- Inner Diameter (ID): 7/8 inch
- Pressure Rating: CO2 60 Bar
- Refrigerant Compatibility: R-410A
- Manufactured to exceed ISO/AS 5149.2 standards
- Produced in ISO9001 accredited facility
- Batch verification burst tested
- Recommended 15% silver solder for brazing in high pressure applications
- Dimensions (H x L x W): 20mm x 35mm x 35mm
- Weight: 0.1 kg
Key Features
- Rated for CO2 60 Bar and R-410A refrigerants
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked fittings for safety indicating R-410A and HP-60 rating
- Designed to remove stress and fatigue focus points
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing; ensure mechanical and thermal stress is avoided in pipework design.
Applications
- HVAC systems requiring high-pressure copper fittings
- Refrigeration systems using R-410A refrigerant
- Industrial and commercial copper piping installations
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems and heat pumps
Environmental Benefits
- Durable copper construction reduces need for frequent replacements
- Supports use in energy-efficient HVAC and refrigeration systems
Warranty Information
Warranty provided as per Aspen Pumps standard terms and conditions; typically covers manufacturing defects.
Available Now
The Aspen Pumps Copper Bush HP60 is available for immediate purchase, ideal for high-pressure HVAC and refrigeration system installations.
