Copper C-Connector 16-25sqmm Standard Direct Burial Wattmaster

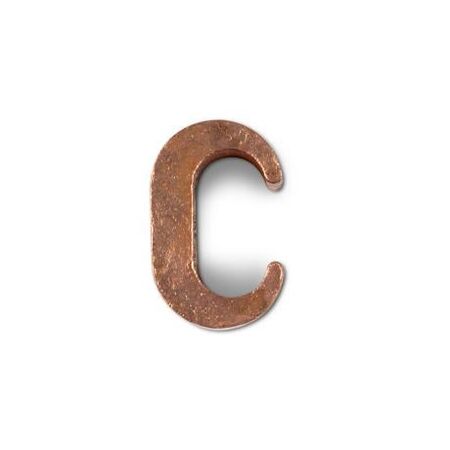

Wattmaster copper C-connector joins and taps 16-25sqmm conductors. Suitable for earthing and direct burial. Crimp install.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.9% pure copper
- Conductor Size Range: 16mm² to 25mm²
- Operating Temperature: -55°C to 155°C
- Compatible with Alco, Cabac, and Burndy C-Connector Dies (12t)
- Suitable for direct burial
- Dimensions (H x L x W): 10mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard C-Connectors for joining and tapping copper conductors
- Suitable for bonding earthing conductors
- Made from 99.9% pure copper
- Compatible with Alco, Cabac and Burndy C-Connector Dies (12t)
- Operating temperature range from -55°C to 155°C
- Suitable for direct burial
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical bonding and earthing
- Joining and tapping copper conductors in electrical installations
- Suitable for direct burial applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable 99.9% pure copper, promoting sustainability
- Durable design reduces need for frequent replacements
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug C-Connector Standard 16mm² To 25mm² is available for immediate purchase, ideal for electrical bonding and conductor joining in residential, commercial, and industrial applications.
