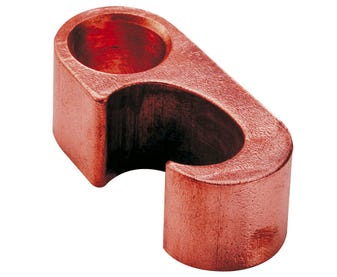

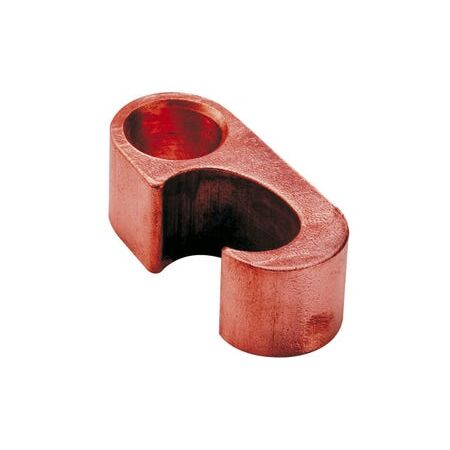

Copper C Connector 50-120mm2 Run | 1.5-120mm Tap Size | Corrosion Resistant & Tamper Proof by Cabac
The Cabac Copper 'C' Connector is a heavy duty, corrosion resistant connector designed for high current jointing or tapping of buried copper earthing grids and earth rods, ensuring durable and tamper-proof earthing connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CCon.50-120mm2run 4mm2tap
Brand: Cabac
SKU: CAEC4
Alternatively Known As: Copper C Connector, Earth Rod Connector, Earthing C Tap Connector, Copper Earthing Connector
Technical Specifications
- Material: 99.9%+ high conductivity copper
- Tap size range: 1.5 to 120mm copper conductors
- Run size: 50-120mm copper conductors
- Earth rod compatibility: 13 to 15mm diameter
- Pre-loaded with jointing compound
- Crimping method: Oval crimp dies with 13 Tonne tool
- Suitable for direct burial
- Dimensions (H x L x W): 20mm x 80mm x 50mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity copper
- Pre-loaded with jointing compound for enhanced corrosion resistance
- Tamper proof and suitable for direct burial
- Designed for tapping copper conductors from 1.5 to 120mm
- Compatible with standard 13 Tonne crimping tools and oval crimp dies
Professional Installation Requirements
- Installation requires professional crimping using appropriate oval crimp dies and a 13 Tonne crimping tool by a qualified electrician or technician.
Applications
- Buried copper earthing grids
- Earth rods with diameter 13 to 15mm
- Earthing networks requiring corrosion resistant and high current jointing or tapping
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Corrosion resistance extends product life reducing replacement waste
- High conductivity copper ensures efficient earthing reducing energy losses
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Copper 'C' Connector is available for immediate purchase, ideal for electrical earthing and bonding applications in residential, commercial, and industrial settings.
