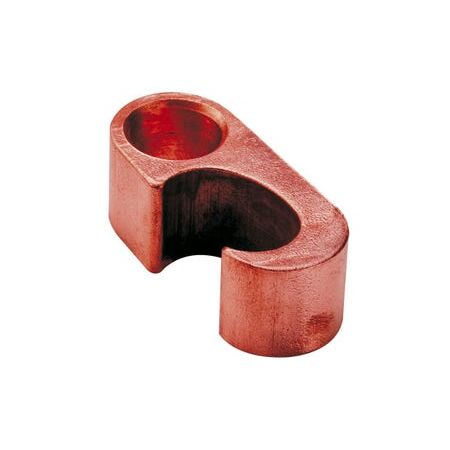

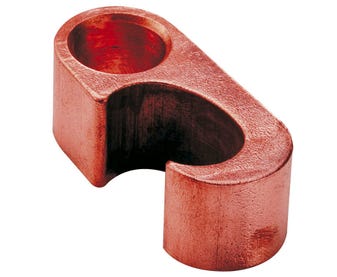

Copper C Connector 50-120mm² Run | 10mm² Tap | Corrosion Resistant & Tamper Proof by Cabac
The Cabac CCon 50-120mm2 Run 10mm2 Tap Copper 'C' Connector is designed for corrosion resistant, high current jointing or tapping of buried copper earthing grids and earth rods, ensuring durable and tamper-proof connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CCon 50-120mm2run 10mm2tap
Brand: Cabac
SKU: CAEC10
Alternatively Known As: Copper C Connector, Earth Rod Connector, Copper Earthing Connector, Buried Earth Connector
Technical Specifications
- Material: 99.9%+ high conductivity copper
- Tap size range: 1.5 to 120mm²
- Run conductor size: 50-120mm²
- Earth rod diameter compatibility: 13 to 15mm
- Pre-loaded with jointing compound
- Crimping method: Oval dies with 13 Tonne tool
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 0.2 kg
Key Features
- Made from 99.9%+ high conductivity copper
- Pre-loaded with jointing compound for enhanced corrosion resistance
- Tamper proof and highly corrosion resistant joint
- Suitable for direct burial
- Compatible with earth rods of 13 to 15mm diameter
- Crimped using oval shaped dies and a standard 13 Tonne tool
Professional Installation Requirements
- Installation requires professional crimping tools and should be performed by qualified electrical or earthing system installers.
Applications
- Buried copper earthing grids
- Earth rods connection
- Earthing networks requiring corrosion resistant joints
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- High conductivity copper reduces energy loss in earthing systems
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Cabac CCon 50-120mm2 Run 10mm2 Tap Copper 'C' Connector is available now for immediate purchase. Ideal for use in earthing and bonding applications requiring durable and corrosion resistant connections.
