Copper C Connector 50-120mm² Run 16mm² Tap | High Conductivity | Corrosion Resistant | Tamper Proof by Cabac

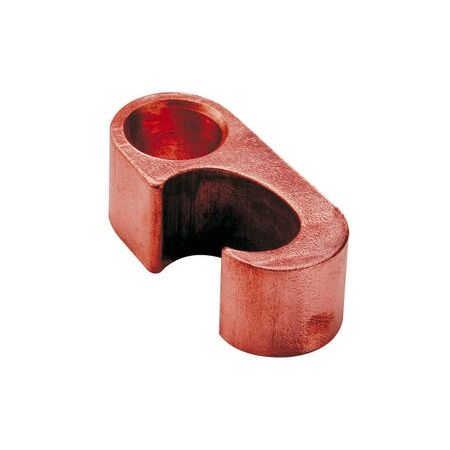

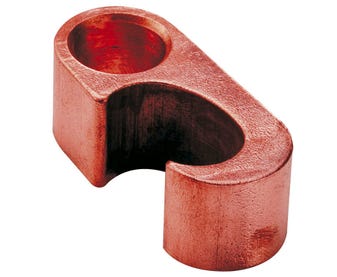

The Cabac Copper 'C' Connector 50-120mm2 Run 16mm2 Tap is a heavy duty, corrosion resistant connector designed for high current jointing or tapping of buried copper earthing grids and earth rods.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CCon 50-120mm2run 16mm2tap
Brand: Cabac
SKU: CAEC16
Alternatively Known As: Copper C Connector, Earth Rod Connector, Copper Earthing Connector, C Tap Connector
Technical Specifications
- Material: 99.9%+ high conductivity copper
- Tap size: 1.5 to 120mm²
- Run size: 50 to 120mm²
- Earth rod compatibility: 13 to 15mm diameter
- Pre-loaded with jointing compound
- Crimping method: Oval dies with 13 Tonne tool
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 0.2 kg
Key Features
- Made from 99.9%+ high conductivity copper
- Pre-loaded with jointing compound for enhanced corrosion resistance
- Tamper proof and highly corrosion resistant joint
- Suitable for direct burial
- Crimped using oval shaped dies and a standard 13 Tonne tool
- Dimensionally identical to Australian market standards
Professional Installation Requirements
- Installation requires professional crimping using appropriate oval dies and a 13 Tonne crimping tool to ensure secure and tamper-proof joints.
Applications
- Buried copper earthing grids
- Earth rods (13 to 15mm diameter)
- Earthing networks requiring corrosion resistant and high current jointing or tapping
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- High conductivity copper reduces energy loss in earthing systems
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac CCon 50-120mm2 Run 16mm2 Tap Copper 'C' Connector is available now for immediate purchase. Ideal for use in earthing and bonding applications requiring durable and corrosion resistant connectors.
