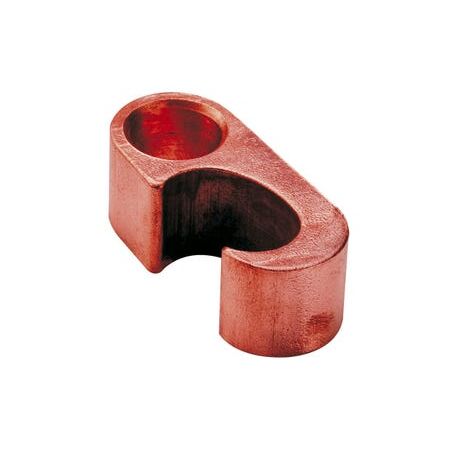

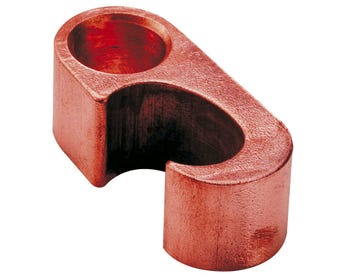

Copper C Connector 50-120mm² Run | 25mm² Tap | Corrosion Resistant & Tamper Proof by Cabac
The Cabac Copper 'C' Connector is a heavy duty, corrosion resistant connector designed for high current jointing or tapping of buried copper earthing grids and earth rods, ensuring tamper proof and durable earthing connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CCon 50-120mm2run 25mm2tap
Brand: Cabac
SKU: CAEC25
Alternatively Known As: Copper C Connector, Earth Rod Connector, Copper Earthing Connector, Buried Earth Connector
Technical Specifications
- Material: 99.9%+ high conductivity copper
- Tap size range: 1.5 to 120mm²
- Run conductor size: 50 to 120mm²
- Earth rod diameter compatibility: 13 to 15mm
- Pre-loaded with jointing compound
- Crimping method: Oval shaped dies with standard 13 Tonne tool
- Suitable for direct burial
- Dimensions (H x L x W): 25mm x 120mm x 50mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity copper
- Pre-loaded with jointing compound for enhanced corrosion resistance
- Tamper proof and suitable for direct burial
- Compatible with crimp dies oval in shape and standard 13 Tonne crimping tool
- Designed for tapping copper conductors from 1.5 to 120mm²
Professional Installation Requirements
- Installation requires professional crimping using appropriate oval dies and a 13 Tonne crimping tool to ensure secure and compliant connections.
Applications
- Buried copper earthing grids
- Earth rods with diameter 13 to 15mm
- Earthing networks requiring corrosion resistant and high current jointing or tapping
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Corrosion resistance extends product life reducing replacement waste
- High conductivity copper reduces energy loss in earthing systems
Warranty Information
Warranty information not specified; standard manufacturer warranty applies.
Available Now
The Cabac CCon 50-120mm2 Run 25mm2 Tap Copper 'C' Connector is available now for immediate purchase. Ideal for use in earthing and bonding applications in electrical installations.
