Copper C Connector 50-120mm² Run 70mm² Tap | Corrosion Resistant & Pre-Loaded | Direct Burial by Cabac

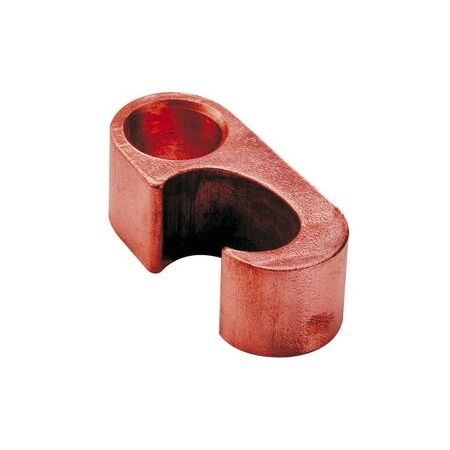

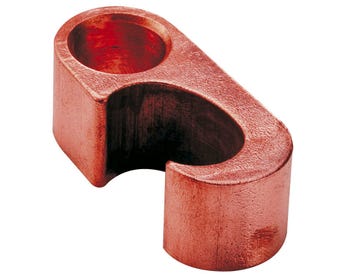

The Cabac Copper 'C' Connector 50-120mm2 Run 70mm2 Tap is a heavy duty, corrosion resistant connector designed for high current jointing or tapping of buried copper earthing grids and earth rods.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CCon 50-120mm2run 70mm2tap
Brand: Cabac
SKU: CAEC70
Alternatively Known As: Copper C Connector, Earth Rod Connector, Copper Earthing Connector, Buried Earth Connector
Technical Specifications
- Material: 99.9%+ high conductivity copper
- Tap size range: 1.5 to 120mm²
- Run size: 70mm²
- Compatible with earth rods diameter: 13 to 15mm
- Pre-loaded with jointing compound
- Crimping method: Oval shaped dies with 13 Tonne tool
- Suitable for direct burial
- Dimensions (H x L x W): 50mm x 120mm x 70mm
- Weight: 0.2 kg
Key Features
- Made from 99.9%+ high conductivity copper
- Corrosion resistant and suitable for direct burial
- Pre-loaded with jointing compound for enhanced connection
- Tamper proof and high current jointing or tapping
- Compatible with 13 to 15mm diameter earth rods
- Crimped using oval shaped dies and a standard 13 Tonne tool
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper crimping and secure earthing connections.
Applications
- Buried copper earthing grids
- Earth rods connection and tapping
- Earthing networks requiring corrosion resistant joints
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable 99.9% pure copper
- Durable and corrosion resistant, reducing replacement frequency
- Supports safe and effective earthing to prevent electrical hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The Cabac CCon 50-120mm2 Run 70mm2 Tap Copper 'C' Connector is available now for immediate purchase. Ideal for electrical earthing and bonding applications requiring corrosion resistant and durable connectors.
