Trade Discount 17%
Copper C Connector 50-120mm² Run 95mm² Tap | Corrosion Resistant & Tamper Proof | Direct Burial by Cabac

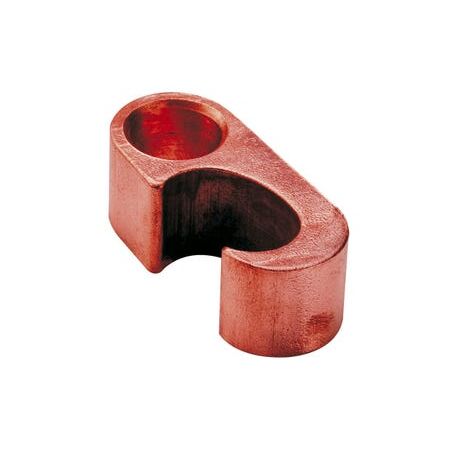

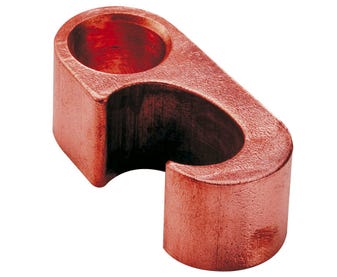

The Cabac CCon 50-120mm2 Run 95mm2 Tap Copper 'C' Connector is a heavy-duty, corrosion resistant connector designed for high current jointing or tapping of buried copper earthing grids and earth rods.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CCon 50-120mm2run 95mm2tap
Brand: Cabac
SKU: CAEC95
Alternatively Known As: Copper C Connector, Earth Rod Connector, Copper Earthing Connector, Buried Earth Connector
Technical Specifications
- Material: 99.9%+ high conductivity copper
- Tap size range: 1.5 to 120mm²
- Run size: 95mm²
- Earth rod diameter compatibility: 13 to 15mm
- Pre-loaded with jointing compound
- Crimping method: Oval crimp dies with 13 Tonne tool
- Dimensions (H x L x W): 50mm x 120mm x 95mm
- Weight: 0.2 kg
Key Features
- Made from 99.9%+ high conductivity copper
- Pre-loaded with jointing compound for enhanced corrosion resistance
- Tamper proof and suitable for direct burial
- Designed for tapping copper conductors from 1.5 to 120mm²
- Compatible with standard 13 Tonne crimping tools and oval crimp dies
Professional Installation Requirements
- Installation requires professional crimping using appropriate oval crimp dies and a 13 Tonne crimping tool to ensure secure and tamper-proof joints.
Applications
- Buried copper earthing grids
- Earth rods with diameter 13 to 15mm
- Earthing networks requiring corrosion resistant and high current jointing or tapping
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- High conductivity copper ensures efficient electrical earthing reducing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac CCon 50-120mm2 Run 95mm2 Tap Copper 'C' Connector is available now for immediate purchase. Ideal for use in earthing and bonding applications in electrical installations.
