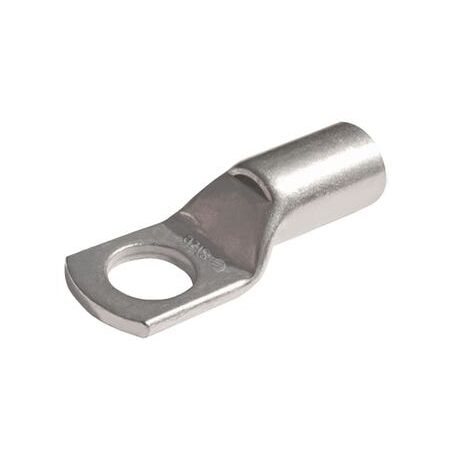

Copper Cable Lug 10mm2 M8 Cabac
Cabac copper cable lug, 10mm2, tin-plated, to AS standards. Ideal for copper conductor stud terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.95% pure annealed copper
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductile rating: 40%
- Electroplating: 99.9% pure tin, 5-10 microns thickness
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 10 mm²
- Stranding: 7 strands of 1.35 mm diameter
- ID size: 4.7 mm
- Stud size: 8 mm
- Recommended torque for 8 mm stud: 22 Nm
- Dimensions (H x L x W): 20mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Electroplated with 99.9% pure tin for corrosion resistance
- Compatible with standard Australian tooling
- High tensile strength of 200 MPa and ductile rating of 40%
- Interchangeable tooling with CABAC, Utilux, and Burndy
Professional Installation Requirements
- Should be installed by a qualified electrician using standard Australian crimping tools for safety and compliance.
Applications
- Electrical power connectivity for industrial and residential wiring
- Used in electrical panels and switchboards
- Suitable for crimping copper cables in power distribution
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable materials extend product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms.
Available Now
The Cabac Copper Lug 10mm2 Cable 8mm Stud is available now for immediate purchase. Ideal for electrical power connectivity and cable termination applications.
