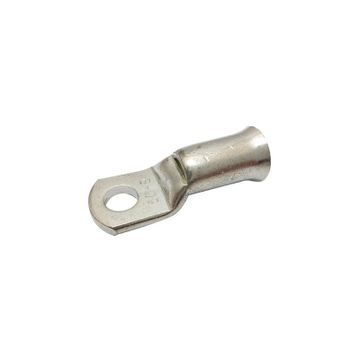

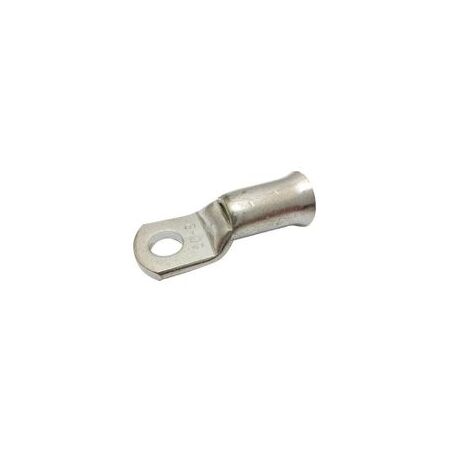

Copper Cable Lug 16mm² with Bell Mouth Entry | High Conductivity | 12mm Stud by Tradepro
Copper cable lug with a bell mouth entry design for easy cable insertion, suitable for 16mm² cables with a 12mm stud. Ideal for electrical cable terminations in industrial and commercial installations, ensuring reliable power distribution and grounding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Cable Lug 16mm² with Bell Mouth Entry | High Conductivity | 12mm Stud by Tradepro
Brand: Tradepro Australia Pty Ltd
SKU: TRACLBM16-12
Alternatively Known As: Copper Cable Lug 16mm², Bell Mouth Copper Terminal, Electrical Copper Lug 16mm², Cable Lug 16mm² with 12mm Stud
Technical Specifications
- Material: High conductivity copper
- Cable Size: 16mm²
- Stud Size: 12mm
- Design: Bell mouth entry for easy cable insertion
- Dimensions (H x L x W): 10mm x 50mm x 20mm
- Weight: 0.05 kg
Key Features
- Bell mouth entry design for easy cable insertion
- High conductivity copper material
- Suitable for 16mm² cable size with 12mm stud
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical cable terminations
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Copper is recyclable, reducing environmental impact
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Tradepro Australia for specific warranty details.
Available Now
The Bell Mouth Entry Copper Lug 16mm² with 12mm stud is available for immediate purchase. Ideal for electrical cable termination in industrial and commercial electrical installations.
