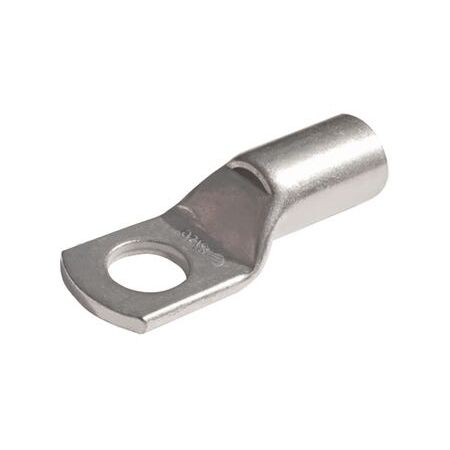

Copper Cable Lug 2.5mm2 M5 Cabac

BRAND: CABAC
SKU: CAL2.5-5
$13.70 List price: $18.20
100 BOX ($0.14 per BOX)
+ −
30 Days Return Electricians Unlock Trade Access
Cabac copper cable lug, 2.5mm2, tin-plated, to AS standards. Ideal for copper conductor stud terminations.
Technical Specifications
  • Material: 99.95% pure annealed copper
  • Oxygen content: 30 ppm max
  • Tensile strength: 200 MPa
  • Ductility rating: 40%
  • Electroplating: 99.9% pure tin, 5-10 microns thickness
  • Total conductivity: 99.7% IACS
  • Total resistivity: 1.738 micro-ohm cm
  • Nominal conductor size: 2.5 mm²
  • Stranding: 7 strands of 0.67 mm diameter
  • ID size: 2.4 mm
  • Stud size: 5 mm
  • Recommended torque for 5 mm stud: 5 Nm
  • Dimensions (H x L x W): 30mm x 50mm x 10mm
  • Weight: 0.1 kg
Key Features
  • Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
  • Electroplated with 99.9% pure tin with 5-10 microns thickness for corrosion resistance
  • Interchangeable tooling compatible with CABAC, Utilux, and Burndy
  • Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure proper crimping and torque application according to Australian standards.
Applications
  • Electrical power connectivity for residential, commercial, and industrial wiring
  • Suitable for use in electrical installations requiring secure cable connections
  • Compatible with Australian standard tooling for crimping
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • High conductivity copper reduces energy loss in electrical systems
  • Durable tin plating extends product life, reducing waste and replacement frequency
Warranty Information

Warranty against manufacturing defects as per Cabac standard policy.

Available Now

The Cabac Copper Lug 2.5mm2 Cable 5mm Stud is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and compliant cable terminations.
