Copper Cable Lug 300mm² | High Conductivity | Tin Electroplated | Easy Insertion by Cabac

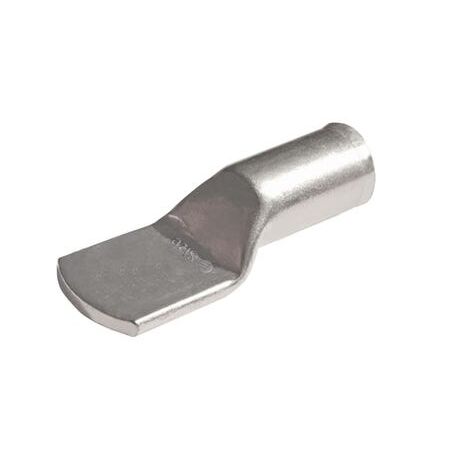

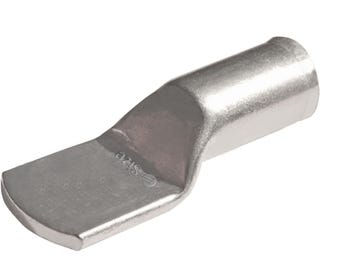

The Cabac Bellmouth Copper Lug 300mm2 Cable Blank Stud is designed for fine stranded flexible cables, featuring a bellmouth funnel for easy conductor insertion and high conductivity annealed copper construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bellmouth Copper Lug 300mm2 Cable Blank Stud
Brand: Cabac
SKU: CAL300BM
Alternatively Known As: Copper Cable Lug, Bellmouth Cable Lug, 300mm2 Copper Lug, Cable Terminal Lug
Technical Specifications
- Nominal Conductor Size: 300mm²
- ID Size: 23.5mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
- Bellmouth design makes conductor insertion easier
- Electroplated with 99.9% pure tin for corrosion resistance
Professional Installation Requirements
- Professional installation by qualified electricians is recommended to ensure proper crimping and secure connections, especially for fine stranded cables requiring higher crimping force.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in industrial and commercial electrical installations
- Ideal for high conductivity copper cable connections
Standards & Compliance
- Complies with AS4325.1
Environmental Benefits
- High conductivity copper reduces energy loss in electrical connections
- Durable materials extend product life, reducing waste
- Tin electroplating enhances corrosion resistance, minimizing replacement frequency
Warranty Information
Warranty details available upon request from Cabac.
Available Now
The Cabac Bellmouth Copper Lug 300mm2 Cable Blank Stud is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable and high conductivity cable terminations.
