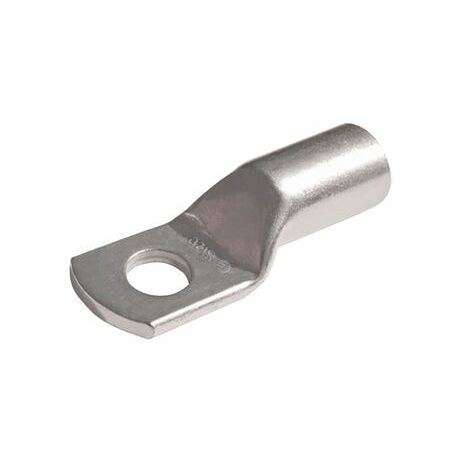

Copper Cable Lug 300mm2 M16 Cabac

BRAND: CABAC
SKU: CAL300-16
$28.40 List price: $37.80
1 EA ($28.40 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
Cabac copper cable lug, 300mm2, tin-plated, to AS standards. Ideal for copper conductor stud terminations.
Technical Specifications
  • Material: 99.95% pure annealed copper
  • Oxygen content: 30 ppm max
  • Tensile strength: 200 MPa
  • Ductile rating: 40%
  • Electroplating: 99.9% pure tin, 5-10 microns thickness
  • Total conductivity: 99.7% IACS
  • Total resistivity: 1.738 micro-ohm cm
  • Torque recommendations (Nm): 5mm thread - 5, 6mm - 9, 8mm - 22, 10mm - 44, 12mm - 77, 16mm - 190
  • Dimensions (H x L x W): 10mm x 100mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Made from 99.9%+ high conductivity annealed copper
  • Electroplated with 99.9% pure tin with 5-10 microns thickness
  • Interchangeable tooling with CABAC, Utilux, and Burndy
  • Complies with AS4325.1 Australian standard
  • Recommended torque values provided for various thread diameters
Professional Installation Requirements
  • Should be installed and crimped using standard Australian tooling by a qualified electrician to ensure compliance and safety.
Applications
  • Electrical power connectivity
  • General purpose crimp lugs for electrical installations
  • Suitable for use with standard Australian tooling
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • High conductivity reduces energy loss and improves electrical efficiency
  • Durable materials reduce need for frequent replacements
Warranty Information

Warranty details available upon request from manufacturer.

Available Now

The Cabac Copper Lug 300mm2 Cable 16mm Stud is available for immediate purchase, ideal for electrical power connectivity and general purpose crimping applications.
