Copper Cable Lug 400mm2 | High Conductivity | Easy Insertion | Crimped Design by Cabac

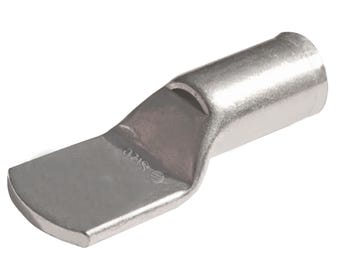

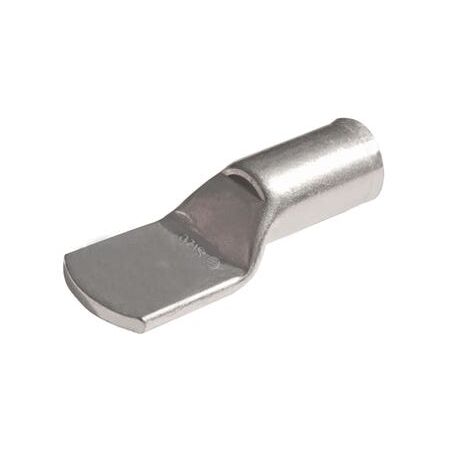

The Bellmouth Copper Lug 400mm2 Cable Blank Stud by Cabac is designed for fine stranded flexible cables, featuring a bellmouth funnel for easy conductor insertion and high conductivity annealed copper construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bellmouth Copper Lug 400mm2 Cable Blank Stud
Brand: Cabac
SKU: CAL400BM
Alternatively Known As: Copper Bellmouth Lug, Cable Lug 400mm2, Stranded Cable Lug, Copper Cable Connector
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Oxygen content: 30 p.p.m max
- Tensile strength: 200 MPa
- Ductile rating: 40%
- Final metal state: fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating thickness: 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Operating Temperature: -55 to 155°C
- Dimensions (H x L x W): 30mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
- Bellmouth design makes conductor insertion easier
- Tooling interchangeable between CABAC, Utilux, and Burndy
Professional Installation Requirements
- Professional installation by qualified electrical technicians is recommended to ensure proper crimping and compliance with electrical standards.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in electrical installations requiring high conductivity lugs
- Ideal for crimping stranded cables in industrial and commercial electrical systems
Standards & Compliance
- AS4325.1
Environmental Benefits
- High conductivity reduces energy loss in electrical connections
- Durable materials extend product lifespan, reducing waste
Warranty Information
Warranty details available upon request from Cabac sales team.
Available Now
The Bellmouth Copper Lug 400mm2 Cable Blank Stud by Cabac is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and high conductivity cable lugs.
