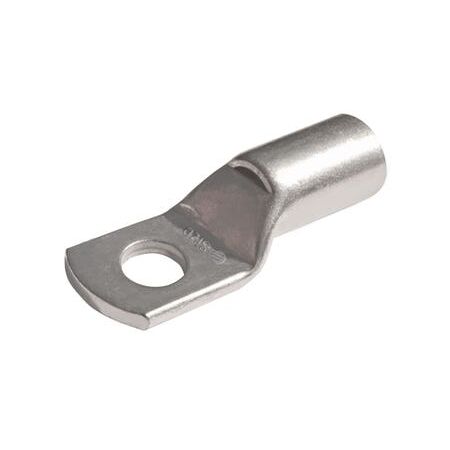

Copper Cable Lug 70mm2 M10 Cabac
Cabac copper cable lug, 70mm2, tin-plated, to AS standards. Ideal for copper conductor stud terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.95% pure annealed copper
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony, thickness 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 70 mm²
- Stranding: 19 strands of 2.14 mm diameter
- ID size: 11.2 mm
- Stud size: 10 mm
- Recommended torque (Nm): 10 mm stud - 44 Nm
- Dimensions (H x L x W): 50mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with lead and antimony for durability
- Compatible with standard Australian tooling for crimping
- Interchangeable tooling with CABAC, Utilux, and Burndy
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and torque application according to Australian standards.
Applications
- Electrical power connectivity for industrial and residential wiring
- Suitable for use in electrical installations requiring secure cable connections
- General use in electrical and power distribution systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss and improves efficiency
- Durable materials extend product life, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Copper Lug 70mm2 Cable 10mm Stud is available for immediate purchase. Ideal for electrical power connectivity and cable termination applications.
