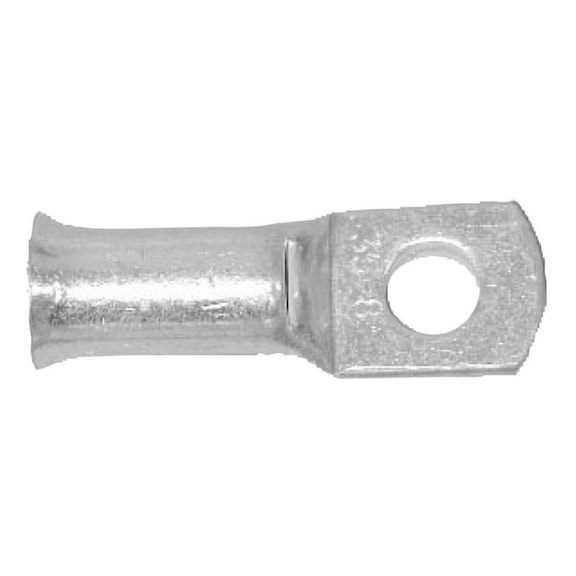

Copper Cable Lugs | Tin Plated Copper | M8 Flange Hole | 6 mm² Wire | @Pack of 10 | by Wurth
Copper cable lugs with tin plated copper construction and M8 flange hole are perfect for secure electrical connections. Designed for 6 mm² wire, these lugs ensure optimum electrical performance and durability, making them ideal for connecting cables to appliances, terminals, and batteries. Recommended for professional installation to guarantee compliance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Cable Lugs | Tin Plated Copper | M8 Flange Hole | 6 mm² Wire | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 967000003
Alternatively Known As: Copper Cable Lug, Tin Plated Copper Lug, Electrical Cable Connector, Battery Cable Lug
Technical Specifications
- Wire cross section: 6 mm²
- Flange hole: M8
- Wire diameter (d1): 3.5 mm
- Diameter of hole (d2): 8.4 mm
- Distance between sleeve end and centre of hole (e): 23 mm
- Sleeve length (a): 9 mm
- Width (b): 12 mm
- Material: Copper
- Surface: Tin plated
- Dimensions (H x L x W): 9mm x 23mm x 12mm
- Weight: 0.02 kg
Key Features
- Tin plated copper aids in corrosion protection
- More durable connection
- Longer component life
- Optimum electrical performance
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure secure and compliant electrical connections.
Applications
- Connecting electrical cables to appliances
- Connecting cables to terminals
- Connecting cables to surfaces
- Connecting cables to batteries
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Tin plating enhances durability reducing the need for frequent replacements
- Copper is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Copper Cable Lugs TUBCBLLUG CU SN M8 6SMM 10 PCS are available now for immediate purchase. Ideal for electrical wiring and battery connection applications.
