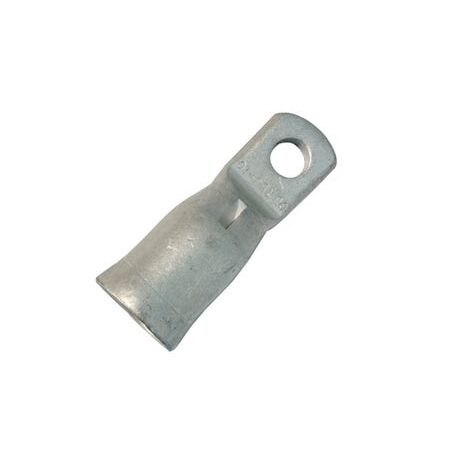

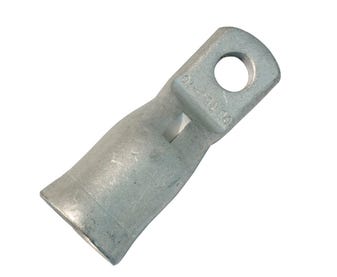

Copper Circuit Breaker Lug 150mm | 12mm Stud | High Conductivity | Narrow Palm by Cabac

BRAND: CABAC

SKU: CALCB150-12

$12.40 List price: $15.00

+ −

30 Days Return Delivery Options

Copper circuit breaker lug with 150mm length and 12mm stud—ideal for terminating large cables to circuit breakers. Built for industrial and commercial switchboards, with high conductivity and narrow palm design for secure connections.

Description

Product Name/Title: CircBreaker Lug 150mm 12mm Stud

Brand: Cabac

SKU: CALCB150-12

Alternatively Known As: Copper Circuit Breaker Lug, Electrical Lug, Cable Lug, Copper Lug Terminal

Technical Specifications

Conductive Material: Copper 99.95% pure
Oxygen content: 30 p.p.m max
Tensile strength: 200 MPa
Ductile rating: 40%
Final metal state: fully annealed
Electroplating Material: Tin 99.9% pure with lead + antimony
Thickness of plating: 5-10 microns
Total conductivity: 99.7% IACS
Total resistivity: 1.738 micro-ohm cm
Operating Temperature: -55 to 155°C
Tooling is interchangeable with CABAC, Utilux, and Burndy
Dimensions (H x L x W): n/a mm x 150mm x 30mm
Weight: 0.1 kg

Key Features

Specially made for terminating large cables to circuit breakers
Narrow palm design fits into circuit breaker connection tunnel
Unique bell mouth for easy insertion of fine stranded conductors
Made from 99.9%+ high conductivity copper
Tooling interchangeable with CABAC, Utilux, and Burndy

Professional Installation Requirements

Professional installation by a qualified electrician is recommended to ensure proper crimping and secure connections.

Applications

Terminating large cables to circuit breakers
Use in switchboards with flexible cables
Electrical power connectivity in industrial and commercial switchboards

Standards & Compliance

Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Made from high purity copper which is recyclable
Durable design reduces need for frequent replacements

Warranty Information

Warranty details available upon request from Cabac.

Available Now

The Cabac CircBreaker Lug 150mm 12mm Stud is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable cable termination to circuit breakers.
