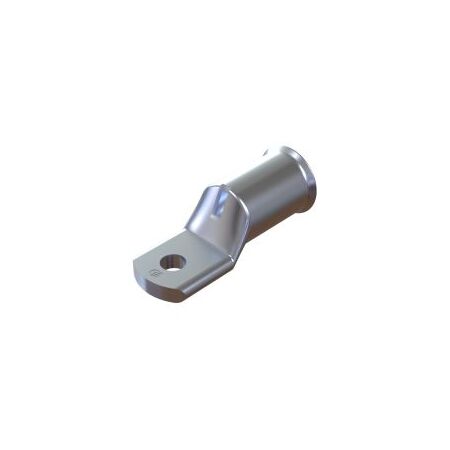

Copper Circuit Breaker Lug 185mm² M8 Stud Cabac
Cabac copper circuit breaker lug features 185mm² size, M8 stud, narrow palm, bellmouth entry and 99.9% copper to AS/NZS 4325.1. Ideal for MCCB terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper Circuit Breaker Lug, Narrow Palm Cable Lug, Copper Crimp Lug, CALCB185-8
Technical Specifications
- Part Number: CALCB185-8
- Nominal Conductor Size: 185mm²
- Stud Size: M8 / 8mm
- Cable Entry ID: 18.4mm
- Material: 99.95% pure copper
- Electrical Conductivity: 99.7% IACS
- Finish: Electro-tinned copper, 5–10 micron plating
- Operating Temperature: -55°C to +155°C
- Recommended Crimp Tool: HT130-C-185
- Crimps Required: 1
- Packaging Unit: 1 each; box quantity 10
- Dimensions (H x L x W): 32mm x 74mm x 24.5mm
- Weight: 0.25 kg
Key Features
- Narrow palm design for restricted circuit breaker connection tunnels
- Bellmouth entry assists insertion of fine-stranded flexible conductors
- Manufactured from high-conductivity oxygen-free copper
- Fully annealed copper provides flexibility and resistance to cracking during crimping
- Suitable for large copper cable terminations in MCCBs and switchboards
- Tooling interchangeable with CABAC, Utilux and Burndy systems
Professional Installation Requirements
- Installation and crimping should be performed by a licensed electrician or suitably qualified electrical tradesperson using the specified crimp die and following the cable, circuit breaker and switchboard manufacturer's requirements. Verify the completed termination in accordance with AS/NZS 3000.
Applications
- MCCB cable terminations
- Low-voltage switchboard construction
- Industrial electrical distribution equipment
- Flexible copper cable connections to circuit breakers
- Commercial and industrial power installations
Standards & Compliance
- AS/NZS 4325.1: Compression and mechanical connectors for power cables with copper or aluminium conductors
Environmental Benefits
- Copper is highly recyclable and can be recovered at end of service life
- Durable copper construction supports long service life and reduces replacement waste
- High electrical conductivity can help minimise connection losses when correctly installed
- Electro-tinned finish helps resist corrosion and extend service life
Warranty Information
CABAC terms provide a one-year period from supply for repair or replacement of defective goods, subject to correct installation, use and applicable Australian Consumer Law rights.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock availability.
