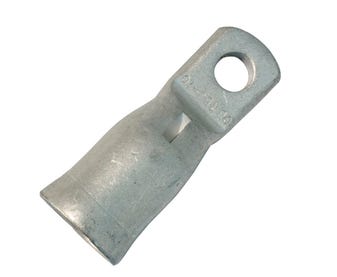

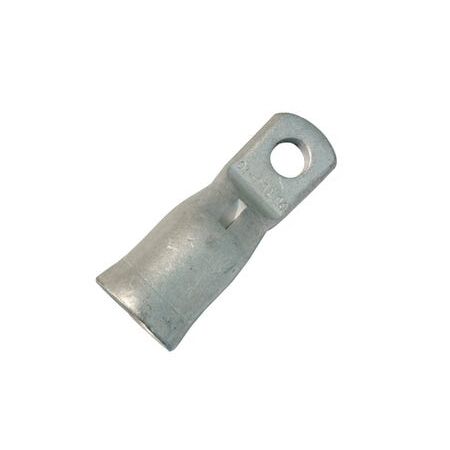

Copper Circuit Breaker Lug 240mm | 10mm Stud | High Conductivity | Narrow Palm by Cabac

BRAND: CABAC

SKU: CALCB240-10

$29.80 List price: $36.10

+ −

30 Days Return Delivery Options

Copper circuit breaker lug with 240mm size and 10mm stud—ideal for terminating large cables to circuit breakers. Built for electrical switchboards, with high conductivity copper and a narrow palm design for easy installation.

Description

Product Name/Title: Copper Circ Breaker Lug 240mm 10mm Stud

Brand: Cabac

SKU: CALCB240-10

Alternatively Known As: Copper Circuit Breaker Lug, Copper Lug for Circuit Breaker, Electrical Cable Lug, Copper Cable Lug 240mm, Circuit Breaker Terminal Lug

Technical Specifications

Nominal Conductor Size: 240 mm²
ID Size: 21.2 mm
Stud Size: 10 mm
Conductive Material: Copper 99.95% pure
Oxygen Content: 30 ppm max
Tensile Strength: 200 MPa
Ductile Rating: 40%
Final Metal State: Fully annealed
Electroplating Material: Tin 99.9% pure with lead and antimony
Electroplating Thickness: 5-10 microns
Total Conductivity: 99.7% IACS
Total Resistivity: 1.738 micro-ohm cm
Operating Temperature Range: -55 to 155 °C
Tooling Compatibility: Interchangeable with CABAC, Utilux, and Burndy
Dimensions (H x L x W): 10mm x 240mm x 21.2mm
Weight: 0.1 kg

Key Features

Specially made for terminating large cables to circuit breakers
Narrow palm design fits into circuit breaker connection tunnel
Unique bell mouth for easy insertion of fine stranded conductors
Made from 99.9%+ high conductivity copper for optimal electrical properties
Same barrel dimensions as standard range for normal crimping
Tooling interchangeable with CABAC, Utilux, and Burndy

Professional Installation Requirements

Professional installation by a qualified electrician is recommended to ensure proper crimping and secure connection to circuit breakers.

Applications

Terminating large cables to circuit breakers in electrical switchboards
Use in 150 to 250A circuit breakers with narrow connection tunnels
Suitable for flexible cables with fine stranded conductors

Standards & Compliance

Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Made from high purity copper which is recyclable and has excellent electrical conductivity reducing energy loss.

Warranty Information

Warranty details available upon request from Cabac.

Available Now

The Cabac Copper Circuit Breaker Lug 240mm 10mm Stud is available now for immediate purchase. Ideal for electrical switchboards and circuit breaker cable terminations.
