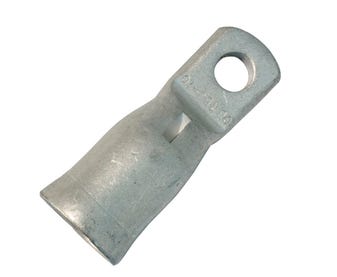

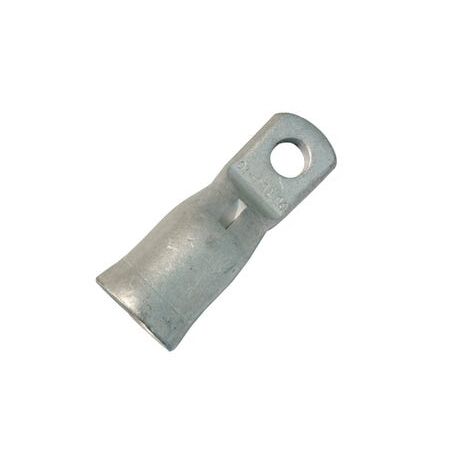

Copper Circuit Breaker Lug 300mm | 10mm Stud | High Conductivity | Narrow Palm by Cabac

BRAND: CABAC

SKU: CALCB300-10

$35.50 List price: $43.00

+ −

30 Days Return Delivery Options

Copper circuit breaker lug with 300mm length and 10mm stud—ideal for terminating large cables to circuit breakers. Built for electrical efficiency, with a narrow palm design and unique bell mouth for easy conductor insertion.

Description

Product Name/Title: Copper Circ Breaker Lug 300mm 10mm Stud

Brand: Cabac

SKU: CALCB300-10

Alternatively Known As: Copper breaker lug, circuit breaker cable lug, copper cable terminal lug, copper breaker terminal, copper lug for circuit breaker

Technical Specifications

Nominal Conductor Size: 300 mm²
ID Size: 23.5 mm
Stud Size: 10 mm
Conductive Material: Copper 99.95% pure
Oxygen Content: 30 ppm max
Tensile Strength: 200 MPa
Ductile Rating: 40%
Final Metal State: Fully annealed
Electroplating Material: Tin 99.9% pure with lead and antimony
Electroplating Thickness: 5-10 microns
Total Conductivity: 99.7% IACS
Total Resistivity: 1.738 micro-ohm cm
Operating Temperature Range: -55 to 155 °C
Dimensions (H x L x W): 10mm x 300mm x 23.5mm
Weight: 0.15 kg

Key Features

Specially made for terminating large cables to circuit breakers
Narrow palm design fits into circuit breaker connection tunnel
Unique bell mouth for easy insertion of fine stranded conductors
Made from 99.9%+ high conductivity copper
Same barrel dimensions as standard range for normal crimping
Tooling interchangeable with CABAC, Utilux, and Burndy

Professional Installation Requirements

Professional installation by a qualified electrician or electrical technician is recommended to ensure proper crimping and secure connection.

Applications

Terminating large cables to circuit breakers in electrical switchboards
Use in 150 to 250A circuit breakers with narrow connection tunnels
Suitable for flexible cables with fine stranded conductors

Standards & Compliance

Complies with AS/NZS 4325 Part 1

Environmental Benefits

Made from high conductivity copper which improves electrical efficiency and reduces energy loss
Durable and long-lasting material reduces need for frequent replacements

Warranty Information

Warranty information available upon request from Cabac.

Available Now

The Cabac Copper Circuit Breaker Lug 300mm 10mm Stud is available for immediate purchase. Ideal for electrical switchboards and circuit breaker cable terminations.
