Circuit Breaker 400mm 10mm Stud, 33mm palm width

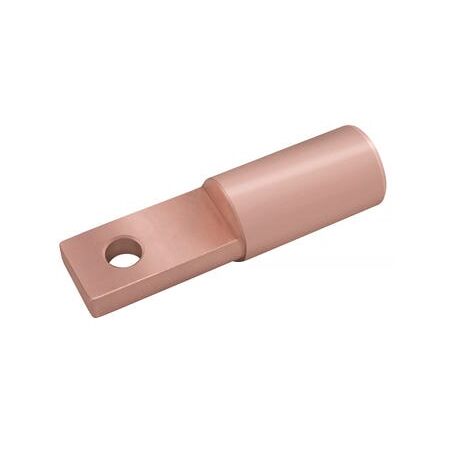

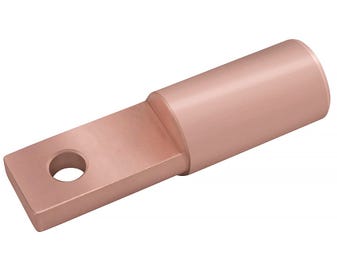

Copper Circuit Breaker Lug 400mm | 10mm Stud | 33mm Palm Width by Cabac

BRAND: CABAC

SKU: CALCB400-10

$66.00 List price: $79.90

+ −

30 Days Return Delivery Options

Copper circuit breaker lug with 400mm length and 10mm stud—ideal for terminating large cables to circuit breakers. Built for electrical efficiency, with a narrow 33mm palm width for easy installation.

Description

Product Name/Title: Circuit Breaker 400mm 10mm Stud, 33mm palm width

Brand: Cabac

SKU: CALCB400-10

Alternatively Known As: Copper Circuit Breaker Lug, Circuit Breaker Cable Lug, Copper Lug for Circuit Breaker, Electrical Cable Lug

Technical Specifications

Conductive Material: Copper 99.95% pure
Oxygen content: 30 p.p.m max
Tensile strength: 200 MPa
Ductile rating: 40%
Final metal state: fully annealed
Electroplating Material: Tin 99.9% pure with lead and antimony
Electroplating thickness: 5-10 microns
Total conductivity: 99.7% IACS
Total resistivity: 1.738 micro-ohm cm
Operating Temperature: -55 to 155°C
Tooling interchangeable with CABAC, Utilux, and Burndy
Dimensions (H x L x W): n/a mm x 400mm x n/a mm
Weight: 0.1 kg

Key Features

Narrow palm design fits into circuit breaker connection tunnel
Unique bell mouth for easier insertion of fine stranded conductors
Made from 99.9%+ high conductivity copper
Same barrel dimensions as standard range for normal crimping
Tooling interchangeable with CABAC, Utilux, and Burndy

Professional Installation Requirements

Installation by a qualified electrician is recommended to ensure proper crimping and secure connections.

Applications

Terminating large cables to circuit breakers
Use in switchboards with flexible cables
Suitable for 150 to 250A circuit breakers with narrow connection tunnels

Standards & Compliance

Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Complies with AS/NZS4325 Part 1

Environmental Benefits

High conductivity copper reduces energy loss and improves electrical efficiency
Durable materials reduce need for frequent replacements, minimizing waste

Warranty Information

Warranty details available upon request from Cabac.

Available Now

The Cabac Copper Circuit Breaker Lug 400mm 10mm Stud is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable cable termination to circuit breakers.
