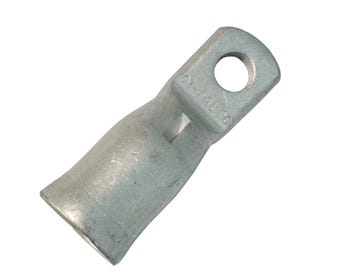

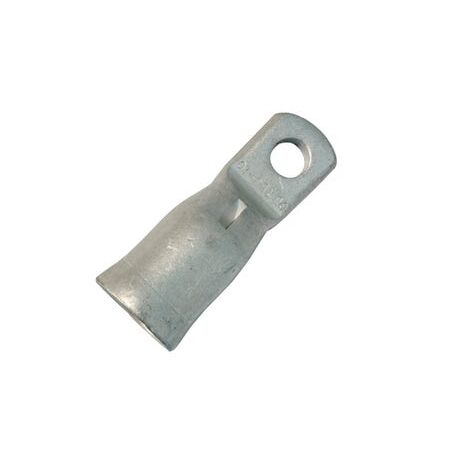

Copper Circuit Breaker Lug 50mm | 8mm Stud | High Conductivity | Narrow Palm by Cabac

BRAND: CABAC

SKU: CALCB50-8

$4.00 List price: $4.80

+ −

30 Days Return Delivery Options

Copper circuit breaker lug with 50mm size and 8mm stud—ideal for terminating large cables to circuit breakers. Built for electrical professionals, with high conductivity and a narrow palm design for secure connections.

Description

Product Name/Title: CircBreaker Lug 50mm 8mm Stud

Brand: Cabac

SKU: CALCB50-8

Alternatively Known As: Copper Circuit Breaker Lug, Copper Lug for Circuit Breakers, Electrical Cable Lug, Copper Cable Terminal Lug

Technical Specifications

Conductive Material: Copper 99.95% pure
Oxygen content: 30 p.p.m max
Tensile strength: 200 MPa
Ductile rating: 40%
Final metal state: fully annealed
Electroplating Material: Tin 99.9% pure with lead and antimony
Electroplating thickness: 5-10 microns
Total conductivity: 99.7% IACS
Total resistivity: 1.738 micro-ohm cm
Operating Temperature: -55 to 155°C
Tooling is interchangeable with CABAC, Utilux, and Burndy
Dimensions (H x L x W): 10mm x 80mm x 50mm
Weight: 0.1 kg

Key Features

Specially made for terminating large cables to circuit breakers
Narrow palm design fits into circuit breaker connection tunnel
Unique bell mouth for easy insertion of fine stranded conductors
Made from 99.9%+ high conductivity copper
Tooling interchangeable with CABAC, Utilux, and Burndy

Professional Installation Requirements

Installation should be performed by a qualified electrician to ensure proper crimping and secure connections.

Applications

Terminating large cables to circuit breakers
Use in switchboards with flexible cables
Suitable for 150 to 250A circuit breakers with narrow connection tunnels

Standards & Compliance

Complies with AS/NZS 4325 Part 1

Environmental Benefits

Made from high purity copper ensuring efficient electrical conductivity reducing energy loss
Durable and long-lasting material reduces need for frequent replacements

Warranty Information

Warranty information available upon request from Cabac.

Available Now

The Cabac CircBreaker Lug 50mm 8mm Stud is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable cable termination to circuit breakers.
