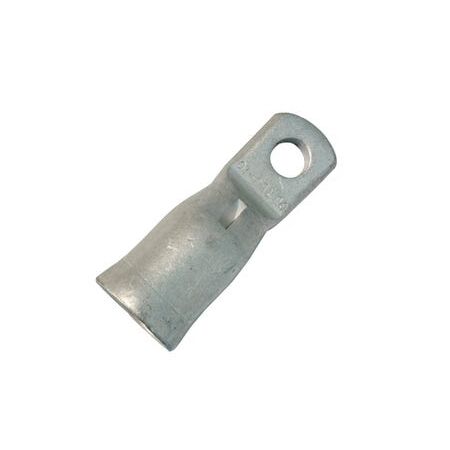

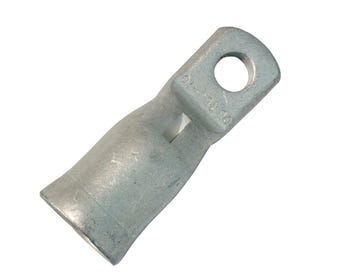

Copper Circuit Breaker Lug 70mm | 6mm Stud | High Conductivity | Tin Plated by Cabac

BRAND: CABAC

SKU: CALCB70-6

$4.20 List price: $5.10

+ −

30 Days Return Delivery Options

Copper circuit breaker lug with 70mm² conductor size and 6mm stud—ideal for terminating large cables to circuit breakers. Built for electrical efficiency, with high conductivity copper and corrosion-resistant tin plating.

Description

Product Name/Title: Copper Circ Breaker Lug 70mm 6mm Stud

Brand: Cabac

SKU: CALCB70-6

Alternatively Known As: Copper breaker lug, circuit breaker cable lug, copper cable terminal lug, electrical breaker lug, copper crimp lug

Technical Specifications

Nominal Conductor Size: 70 mm²
ID Size: 11.2 mm
Stud Size: 6 mm
Conductive Material: 99.95% pure copper
Oxygen Content: 30 ppm max
Tensile Strength: 200 MPa
Ductile Rating: 40%
Final Metal State: Fully annealed
Electroplating Material: 99.9% pure tin with lead and antimony
Electroplating Thickness: 5-10 microns
Total Conductivity: 99.7% IACS
Total Resistivity: 1.738 micro-ohm cm
Operating Temperature Range: -55 to 155 °C
Tooling Compatible with CABAC, Utilux, and Burndy
Dimensions (H x L x W): 20mm x 70mm x 11.2mm
Weight: 0.1 kg

Key Features

Unique bell mouth design for easy insertion of fine stranded conductors
Narrow palm design fits into circuit breaker connection tunnels
Made from 99.9%+ high conductivity copper for optimal electrical performance
Same barrel dimensions as standard lugs for normal crimping
Electroplated with 99.9% pure tin for corrosion resistance

Professional Installation Requirements

Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.

Applications

Terminating large cables to circuit breakers in electrical switchboards
Use in 150 to 250A circuit breakers with narrow connection tunnels
Suitable for flexible cables with fine stranded conductors

Standards & Compliance

Complies with AS/NZS 4325 Part 1

Environmental Benefits

High conductivity copper reduces energy loss and improves electrical efficiency
Durable materials extend product life, reducing waste and replacement frequency

Warranty Information

Warranty details available upon request from Cabac.

Available Now

The Cabac Copper Circuit Breaker Lug 70mm 6mm Stud is available for immediate purchase, ideal for electrical switchboard builders and industrial electrical installations.
