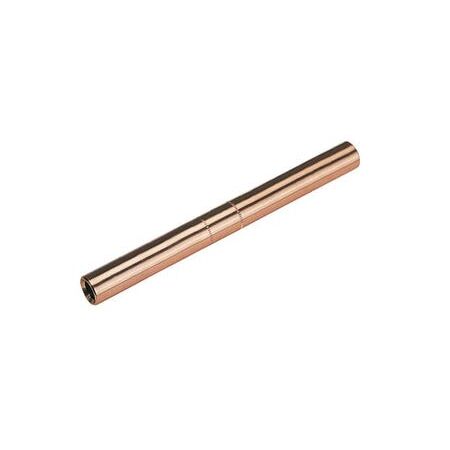

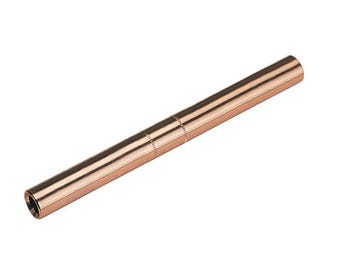

Copper Compression Sleeve 10mm | 99.95% Pure Copper | Full Tension Compliant | Easy Crimping by Cabac
Cabac Copper Compression Sleeves O/H 10mm are high conductivity copper sleeves designed for overhead stranded copper conductors, ensuring reliable full tension electrical connections compliant with AS 1154.1.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cu Compress. Slve O/H 10mm
Brand: Cabac
SKU: PT10
Alternatively Known As: Copper Compression Sleeve 10mm, Copper Crimp Sleeve, Overhead Line Copper Connector, Full Tension Copper Sleeve
Technical Specifications
- Material: 99.95% pure copper
- Oxygen content: 30 ppm
- Tensile strength: 200 MPa
- Ductile rating: 40%
- Final metal state: fully annealed
- Operating temperature range: -55°C to 100°C
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohms cm
- Not plated to ensure limited shelf life
- Dimensions (H x L x W): 10mm x 50mm x 10mm
- Weight: 0.05 kg
Key Features
- Designed for stranded hard drawn copper overhead conductors
- Complies with full tension testing requirements of AS 1154.1
- Quick and easy crimping using hexagonal dies and HT51 hydraulic crimper or larger
- Shorter and less bulky finished joint compared to McIntyre sleeves
- No twisting of conductor required during installation
- Plastic plugs prevent foreign material ingress before crimping
- Compression lines indicate position and number of compressions required
- Internal stop indent ensures correct conductor insertion length
Professional Installation Requirements
- Installation requires professional crimping using hexagonal dies and HT51 hydraulic crimper or larger hydraulic crimper to ensure proper compression and electrical connection.
Applications
- Electrical overhead line connections for stranded hard drawn copper conductors
- Utility and power distribution networks
- Rail and energy service electrical connections
Standards & Compliance
- Complies with AS 1154.1 – Full tension copper compression sleeves for overhead conductors
Environmental Benefits
- Made from 99.9% high conductivity copper, promoting efficient electrical conductivity and reducing energy loss
- Durable and reusable with proper installation, reducing waste
- Non-plated to avoid environmental impact from plating chemicals
Warranty Information
Warranty against manufacturing defects as per supplier terms.
Available Now
Cabac Copper Compression Sleeves O/H 10mm are available for immediate purchase, ideal for electrical overhead line connections in power distribution and utility applications.
