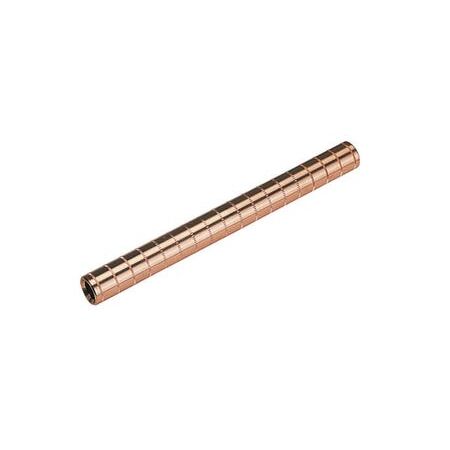

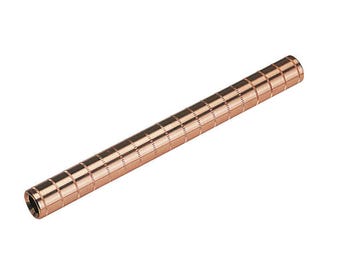

Copper Compression Sleeve 16mm2 | 99.95% Pure Copper | AS 1154 Compliant | Overhead Line by Cabac
Cabac Copper Compression Sleeve O/H 16mm2 is designed for stranded hard drawn copper overhead conductors, providing a reliable, full tension connection compliant with AS 1154.1 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cu Compress. Slve O/H 16mm2
Brand: Cabac
SKU: PT16
Alternatively Known As: Copper Compression Sleeve 16mm2, Copper Crimp Sleeve, Overhead Line Copper Sleeve, Electrical Compression Connector
Technical Specifications
- Conductive material: Copper 99.95% pure
- Oxygen content: 30 p.p.m.
- Tensile strength: 200 MPa
- Ductile rating: 40%
- Final metal state: Fully annealed
- Operating temperature: -55°C to 100°C
- Plating: Not plated due to limited shelf life
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohms cm
- Conformant standards: AS 1154
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.05 kg
Key Features
- Made from 99.9% high conductivity copper
- Complies with full tension testing requirements of AS 1154.1
- Easily and quickly crimped using hexagonal dies and HT51 hydraulic crimper or larger
- Finished joint is shorter and less bulky than McIntyre sleeves
- Plastic plugs prevent foreign material entering sleeve before crimping
- Compression lines marked to indicate position and number of compressions
- Indent in center acts as internal stop for correct conductor insertion
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate hydraulic crimping tools to ensure secure and compliant connections.
Applications
- Designed for use with stranded hard drawn copper overhead conductors
- Suitable for electrical power connectivity in overhead line installations
- Used in energy distribution networks and rail services
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable high conductivity copper
- Durable design reduces need for frequent replacements
- Ensures efficient electrical conductivity reducing energy loss
Warranty Information
Warranty against manufacturing defects as per supplier terms.
Available Now
The Cabac Copper Compression Sleeve O/H 16mm2 is available for immediate purchase, ideal for overhead electrical conductor connections in power distribution and rail applications.
