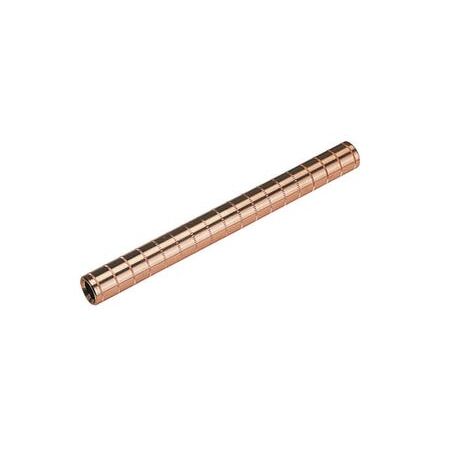

Copper Compression Sleeve 25mm² | 99.95% Conductivity | Quick Crimping | AS 1154 Compliant by Cabac

BRAND: CABAC
SKU: PT25N
$40.60 List price: $49.20
+ −
30 Days Return Delivery Options
Cabac Copper Compression Sleeve for overhead 25mm² copper conductors, designed for quick and reliable crimping with compliance to AS 1154.1 full tension testing standards.

Product Name/Title: Cu Compress. Slve O/H 25mm2

Brand: Cabac

SKU: PT25N

Alternatively Known As: Copper Compression Sleeve 25mm2, Cu Compression Sleeve Overhead, Copper Crimp Sleeve, Overhead Line Copper Sleeve

Technical Specifications
  • Conductive Material: Copper 99.95% pure
  • Oxygen Content: 30 ppm
  • Tensile Strength: 200 MPa
  • Ductile Rating: 40%
  • Final Metal State: Fully annealed
  • Operating Temperature: -55°C to 100°C
  • Plating: Not plated due to limited shelf life
  • Total Conductivity: 99.7% IACS
  • Total Resistivity: 1.738 micro-ohms cm
  • Conformant Standards: AS 1154
  • Dimensions (H x L x W): 15mm x 100mm x 60mm
  • Weight: 0.1 kg
Key Features
  • Made from 99.9% high conductivity copper
  • Complies with full tension testing requirements of AS 1154.1
  • Easily and quickly crimped using hexagonal dies and HT51 hydraulic crimper or larger hydraulic crimpers
  • Finished joint is shorter and less bulky than McIntyre sleeves
  • No twisting of conductor required during installation
  • Plastic plugs fitted to prevent foreign material entry before crimping
  • Compression lines marked on each end to indicate position and number of compressions
  • Indent in the center acts as an internal stop for correct conductor insertion length
Professional Installation Requirements
  • Installation requires professional crimping using hexagonal dies and hydraulic crimpers such as the HT51 to ensure compliance and safety.
Applications
  • Designed for stranded hard drawn copper overhead conductors
  • Used in electrical power connectivity for overhead line connections
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Made from high conductivity copper which is recyclable
  • Durable design reduces need for frequent replacements, minimizing waste
Warranty Information

Warranty information not specified; please contact supplier for details.

Available Now

The Cabac Cu Compression Sleeve Overhead 25mm² is available for immediate purchase, ideal for electrical overhead line connections.
