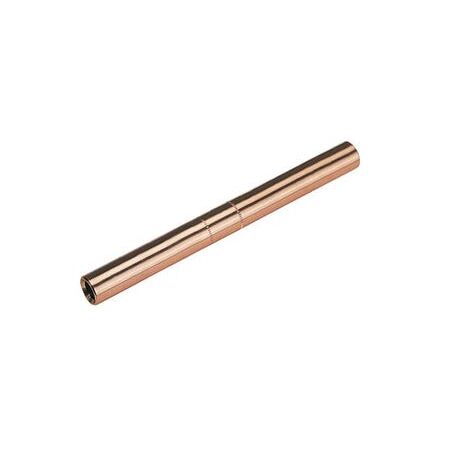

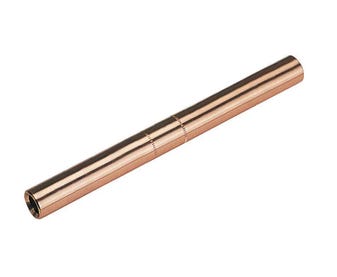

Copper Compression Sleeve 35mm2 | 99.95% Conductivity | AS 1154 Compliant | Compact Design by Cabac
Cabac Copper Compression Sleeve O/H 35mm2 is a high conductivity copper sleeve designed for stranded hard drawn copper overhead conductors, compliant with AS 1154.1 full tension testing standards, providing a reliable and compact joint solution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cu Compress. Slve O/H 35mm2
Brand: Cabac
SKU: PT35
Alternatively Known As: Copper Compression Sleeve 35mm2, Copper Crimp Sleeve, Overhead Line Copper Sleeve, Electrical Compression Connector
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 p.p.m.
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature: -55°C to 100°C
- Plating: Not plated due to limited shelf life
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohms cm
- Conformant Standards: AS 1154
- Dimensions (H x L x W): 20mm x 80mm x 20mm
- Weight: 0.1 kg
Key Features
- Made from 99.9% high conductivity copper
- Complies with full tension testing requirements of AS 1154.1
- Easily and quickly crimped using hexagonal dies and HT51 hydraulic crimper or larger
- Finished joint is shorter and less bulky than McIntyre sleeves
- Plastic plugs prevent foreign material entry before crimping
- Compression lines marked for correct positioning and number of compressions
- Internal stop indent ensures correct conductor insertion length
Professional Installation Requirements
- Installation requires professional crimping using hexagonal dies and HT51 or larger hydraulic crimpers by qualified electrical technicians.
Applications
- Designed for use with stranded hard drawn copper overhead conductors
- Suitable for electrical power connectivity in overhead line connections
- Used in energy utilities and rail services for conductor joining
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable high purity copper
- Durable design reduces need for frequent replacements
- Ensures efficient electrical conductivity reducing energy loss
Warranty Information
Warranty against manufacturing defects as per supplier terms.
Available Now
The Cabac Copper Compression Sleeve O/H 35mm2 is available for immediate purchase, ideal for overhead electrical conductor connections in power distribution and rail applications.
