Copper Compression Sleeve 6mm2 | 99.95% Conductivity | AS 1154 Compliant | Easy Crimping by Cabac

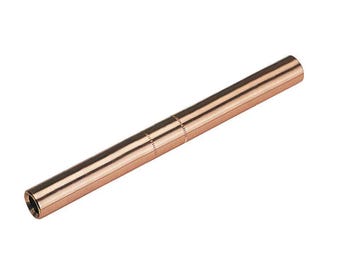

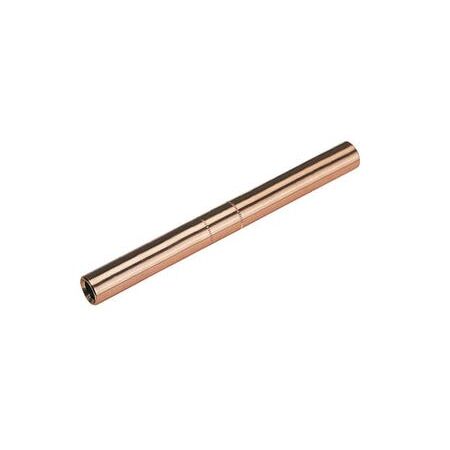

Cabac Copper Compression Sleeve O/H 6mm2 is a high conductivity copper sleeve designed for stranded hard drawn copper overhead conductors, compliant with AS 1154.1 full tension testing requirements, ensuring reliable and efficient electrical connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cu Compress. Slve O/H 6mm2
Brand: Cabac
SKU: PT6
Alternatively Known As: Copper Compression Sleeve 6mm2, Copper Crimp Sleeve, Overhead Line Copper Sleeve, Electrical Compression Connector
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 p.p.m.
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature: -55°C to 100°C
- Plating: Not plated due to limited shelf life
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohms cm
- Conformant Standards: AS 1154
- Dimensions (H x L x W): 10mm x 60mm x 60mm
- Weight: 0.05 kg
Key Features
- Made from 99.9% high conductivity copper
- Complies with full tension testing requirements of AS 1154.1
- Easily and quickly crimped using hexagonal dies and HT51 hydraulic crimper or larger hydraulic crimpers
- Finished joint is shorter and less bulky than McIntyre sleeves
- No twisting of conductor required during installation
- Plastic plugs fitted to ends to prevent foreign material entry
- Compression lines marked to indicate position and number of compressions
- Indent in center acts as internal stop for correct conductor insertion length
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate hydraulic crimping tools to ensure secure and compliant connections.
Applications
- Designed for use with stranded hard drawn copper overhead conductors
- Suitable for electrical power connectivity in overhead line installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable high purity copper
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request; typically covered against manufacturing defects.
Available Now
The Cabac Copper Compression Sleeve O/H 6mm2 is available for immediate purchase, ideal for overhead electrical line connections requiring reliable and compliant copper compression sleeves.
