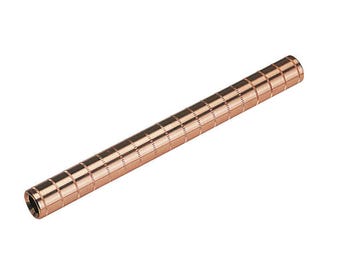

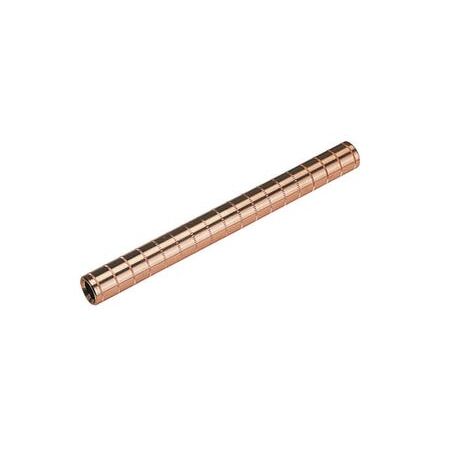

Copper Compression Sleeve 70mm2 | 99.95% Pure Copper | Full Tension Compliant | Easy Crimping by Cabac
Cabac Copper Compression Sleeve O/H 70mm2 is designed for stranded hard drawn copper overhead conductors, providing a reliable, full tension connection compliant with AS 1154.1 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cu Compress. Slve O/H 70mm2
Brand: Cabac
SKU: PT70N
Alternatively Known As: Copper Compression Sleeve 70mm2, Copper Crimp Sleeve, Overhead Copper Conductor Sleeve, Full Tension Copper Sleeve
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 p.p.m.
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature: -55°C to 100°C
- Plating: Not plated due to limited shelf life
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohms cm
- Conformant Standards: AS 1154
- Dimensions (H x L x W): 20mm x 100mm x 70mm
- Weight: 0.1 kg
Key Features
- Made from 99.9% high conductivity copper
- Complies with full tension testing requirements of AS 1154.1
- Easily and quickly crimped using hexagonal dies and HT51 hydraulic crimper or larger
- Finished joint is shorter and less bulky than McIntyre sleeves
- Plastic plugs prevent foreign material entering sleeve before crimping
- Compression lines indicate position and number of compressions required
- Indent in center acts as internal stop for correct conductor insertion
Professional Installation Requirements
- Installation requires professional crimping using hexagonal dies and HT51 hydraulic crimper or larger hydraulic crimper by qualified personnel.
Applications
- Designed for use with stranded hard drawn copper overhead conductors
- Suitable for electrical power connectivity in overhead line installations
- Used in energy utilities and rail services for conductor connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from high conductivity copper which is recyclable
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request; typically covered against manufacturing defects.
Available Now
The Cabac Copper Compression Sleeve O/H 70mm2 is available for immediate purchase, ideal for overhead electrical conductor connections in power and rail industries.
