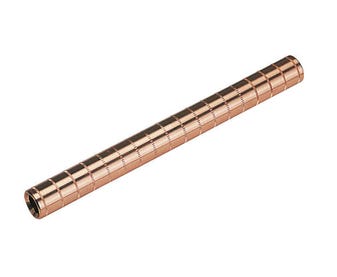

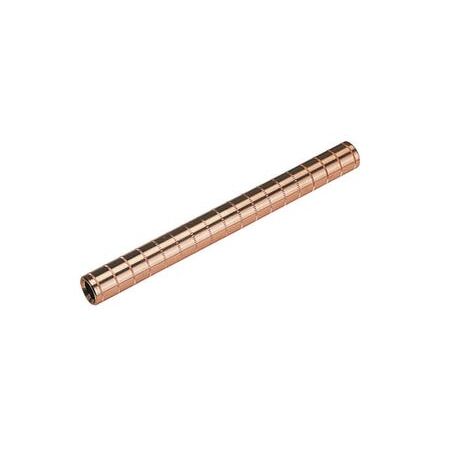

Copper Compression Sleeve 95mm2 | 99.95% Conductivity | AS 1154 Compliant | Easy Crimping by Cabac
Cabac Copper Compression Sleeve O/H 95mm2 is a high conductivity copper sleeve designed for stranded hard drawn copper overhead conductors, compliant with AS 1154.1 full tension testing requirements, ensuring reliable and efficient electrical connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cu Compress. Slve O/H 95mm2
Brand: Cabac
SKU: PT95
Alternatively Known As: Copper Compression Sleeve, Copper Crimp Sleeve, Overhead Line Copper Sleeve, Electrical Compression Connector
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 p.p.m.
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature: -55°C to 100°C
- Plating: Not plated due to limited shelf life
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohms cm
- Conformant Standards: AS 1154
- Dimensions (H x L x W): 20mm x 100mm x 95mm
- Weight: 0.1 kg
Key Features
- Made from 99.9% high conductivity copper
- Complies with full tension testing requirements of AS 1154.1
- Easily and quickly crimped using hexagonal dies and HT51 hydraulic crimper or larger hydraulic crimpers
- Finished joint is shorter and less bulky than McIntyre sleeves
- Avoids twisting of conductor required by McIntyre sleeves
- Plastic plugs fitted to ends to prevent foreign material entry
- Compression lines marked on each end indicating position and number of compressions
- Indent in center acts as internal stop for correct conductor insertion length
Professional Installation Requirements
- Installation requires professional use of hexagonal dies and hydraulic crimpers such as the HT51 or larger hydraulic crimpers for proper compression and secure connection.
Applications
- Designed for stranded hard drawn copper overhead conductors
- Used in electrical power connectivity for overhead line connections
Standards & Compliance
- Complies with AS 1154.1 – Full tension testing requirements for copper compression sleeves
Environmental Benefits
- Made from recyclable high conductivity copper
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty information not specified; please contact manufacturer for details.
Available Now
The Cabac Copper Compression Sleeve O/H 95mm2 is available for immediate purchase, ideal for electrical overhead line conductor connections.
