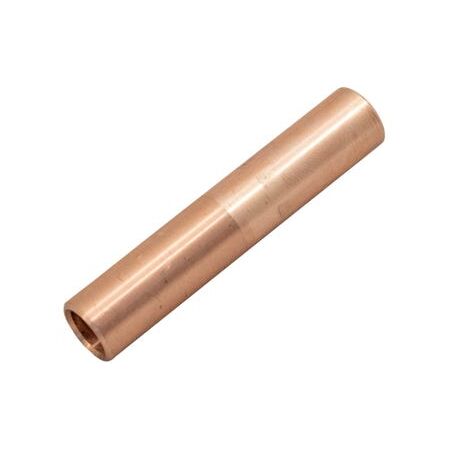

Copper Crimp Link 25sqmm Non-Insulated for Cable Joining Cabac
Cabac 25sqmm copper barrier link seals against moisture and oil for paper-insulated cable joints.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal Conductor Size: 25 mm²
- I.D. Size: 7.5 mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 p.p.m. Max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature Range: -55 to 100 °C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Tooling is interchangeable between Cable Accessories, Utilux and Burndy
- Dimensions (H x L x W): 7.5mm x 50mm x 25mm
- Weight: 0.1 kg
Key Features
- Designed for use with paper insulated cables or any situation where an impermeable barrier to oil or moisture is required
- Reducing links are barrier type as well
- Crimped with CABAC and MSS Power standard tooling copper dies
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to avoid damage to the barrier link.
Applications
- Use with paper insulated cables
- Situations requiring an impermeable barrier to oil or moisture
- Electrical and power connectivity applications
Standards & Compliance
- Complies with AS/NZS 4325 Part 1
Environmental Benefits
- Made from 99.95% pure copper which is recyclable and environmentally friendly
- Durable and long-lasting reducing the need for frequent replacements
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Copper Barrier Link 25mm2 is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring moisture and oil impermeable barriers.
