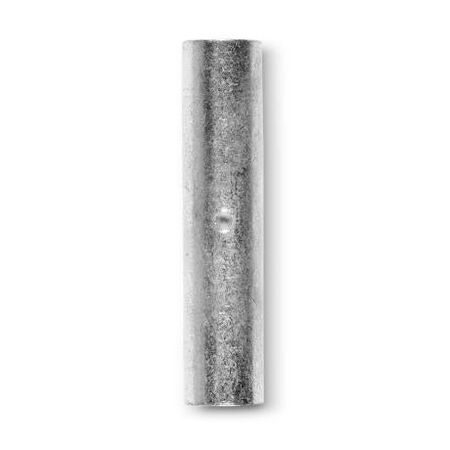

Copper Crimp Link 25sqmm Tinned Non-Insulated Wattmaster
Wattmaster copper crimp link joins 25sqmm cable conductors with high conductivity for reliable in-line connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electrolytic grade copper
- Size: 25mm² to 25mm²
- Finish: Electro-tin plated for corrosion resistance
- Type: Non-insulated bell mouth crimp link
- Compatible with stranded and fine stranded copper conductors (class 2, 5, and 6)
- Suitable for use with 6 tonne, 12 tonne, indent and hex crimp tools
- Dimensions (H x L x W): 10mm x 70mm x 40mm
- Weight: 0.1 kg
Key Features
- Uninsulated electrolytic grade copper crimp links
- Electro-tin plated for corrosion resistance
- Flared ends for ease of entry of stranded conductors
- Compatible with standard 6 tonne, 12 tonne, indent and hex crimp tools
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors
- Suitable for stranded and fine stranded copper conductors in electrical installations
- Used in industrial, commercial, and residential electrical wiring
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for copper conductors >10mm²
Environmental Benefits
- Electro-tin plating enhances durability, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms.
Available Now
The Wattmaster Crimp Link Bell Mouth Non-Insulated Copper 25mm² is available for immediate purchase, ideal for electrical jointing applications in residential, commercial, and industrial settings.
