Trade Discount 25%

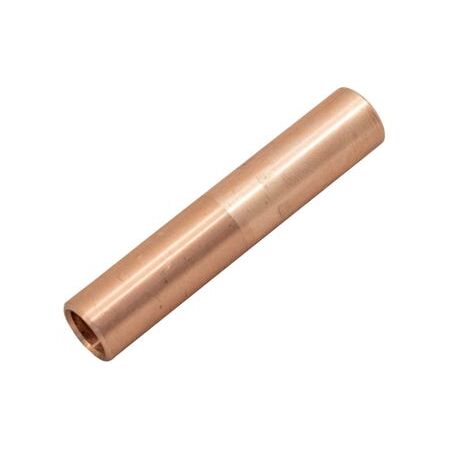

Copper Crimp Link 630sqmm Non-Insulated for Cable Joining Cabac
Cabac 630sqmm copper barrier link seals against moisture and oil for paper-insulated cable joints.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal Conductor: 630 mm²
- I.D. Size: 34.0 mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 p.p.m. Max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature: -55 to 100 °C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Tooling is interchangeable between Cable Accessories, Utilux and Burndy
- Dimensions (H x L x W): 10mm x 630mm x 34mm
- Weight: 0.5 kg
Key Features
- Designed for use with paper insulated cables or any situation where an impermeable barrier to oil or moisture is required
- Reducing links are barrier type as well
- Crimped with CABAC and MSS Power standard tooling copper dies
Professional Installation Requirements
- Professional installation by a qualified electrician or cable technician is recommended to ensure proper crimping and barrier integrity.
Applications
- Use with paper insulated cables
- Situations requiring an impermeable barrier to oil or moisture
Standards & Compliance
- Complies with AS/NZS 4325 Part 1
Environmental Benefits
- High purity copper (99.95%) ensures efficient conductivity reducing energy loss
- Durable and fully annealed metal state extends product life reducing waste
Warranty Information
Warranty information available upon request from the manufacturer.
Available Now
The Copper Barrier Link 630mm2 by Cabac is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable barrier links.
