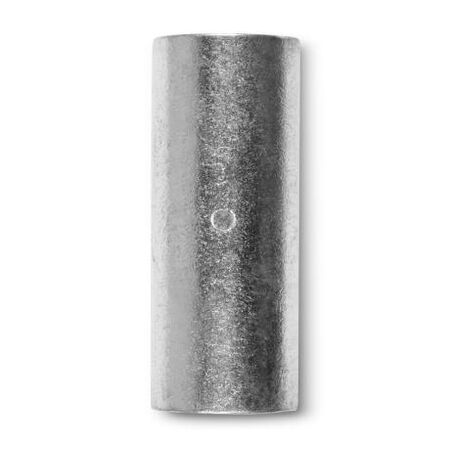

Copper Crimp Link 630sqmm Tinned Non-Insulated Wattmaster
Wattmaster copper crimp link joins 630sqmm cable conductors with high conductivity for reliable in-line connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electro grade copper with electro tinned finish
- Cable Size Compatibility: 630mm²
- Operating Temperature: -55°C to +155°C
- Design: Long barrel with entrance chamfer and centre dimpling
- Compliance: AS/NZS 4325.1:1995 (cl7) for cable sizes >10mm²
- Dimensions (H x L x W): 20mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Non-insulated electro grade copper crimp links
- Long barrel design for secure connections
- Electro tinned finish for enhanced conductivity
- Includes entrance chamfer and centre dimpling for ease of installation
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections for stranded to fine-stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable connectors
Environmental Benefits
- Electro tinned finish improves longevity, reducing replacement frequency and waste
- Copper is recyclable, supporting sustainable material use
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Link Standard Non-Insulated Copper 630mm² is available for immediate purchase, ideal for electrical contractors and industrial applications.
