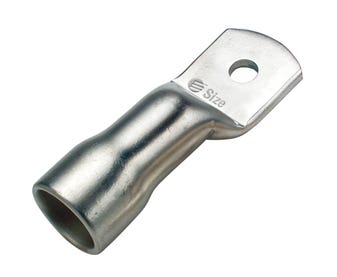

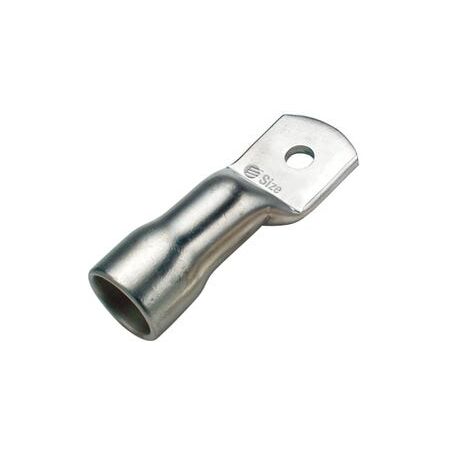

Copper Double Grip Lug 240mm2 Cable | 12mm Stud | High Conductivity & Vibration Resistance | by Cabac
Copper Double Grip Lug 240mm2 Cable with 12mm stud by Cabac, designed for high vibration and critical terminations with flexible cables, made from 99.95% pure copper and compliant with AS/NZS4325 Part 1.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Double Grip Lug 240mm2 Cable 12mmstd
Brand: Cabac
SKU: CAL240-12DG
Alternatively Known As: Copper Double Grip Cable Lug, 240mm2 Copper Lug, High Vibration Copper Lug, Crimp Copper Lug 240mm2
Technical Specifications
- Nominal Cable Size: 240 mm²
- ID Barrel Diameter: 21.4 mm
- ID Flare Diameter: 32.1 mm
- Stud Size: 12 mm
- Conductive Material: 99.95% pure copper with max 30 ppm oxygen
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: 99.9% pure tin with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.3 kg
Key Features
- Made from high conductivity 99.95% pure annealed copper
- Flared barrel crimped onto conductor insulation for vibration resistance
- Crimped using standard Australian dies
- Suitable for high vibration applications
- Electroplated with 99.9% pure tin with lead and antimony
- Operating temperature range from -55 to 155°C
Professional Installation Requirements
- Professional crimping using recommended dies is required to ensure proper termination and compliance with standards.
Applications
- High vibration and critical terminations with flexible cables
- Electrical power connectivity requiring secure cable terminations
Standards & Compliance
- AS/NZS 4325 Part 1 – Copper and Aluminium Conductors and Connectors
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
Copper Double Grip Lug 240mm2 Cable 12mm Stud by Cabac is available for immediate purchase, ideal for electrical power connectivity in high vibration environments.
