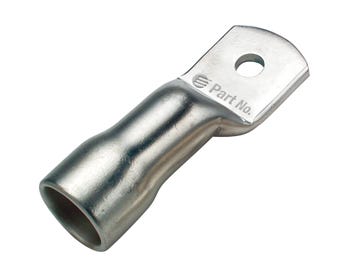

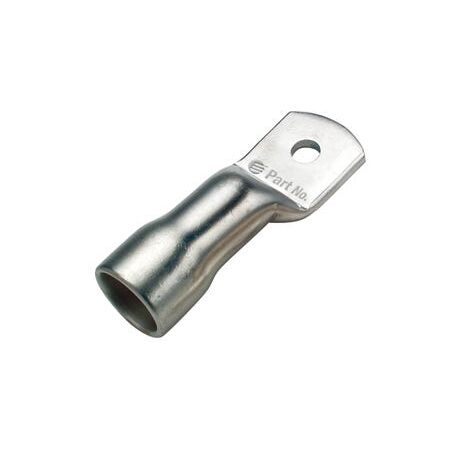

Copper Double Grip Lug 300M2 Cable | 99.95% Pure Copper | High Vibration Resistance | AS/NZS Compliant by Cabac
Cabac Copper Double Grip Lug 300M2 Cable 12mm Standard is designed for high vibration and critical terminations with flexible cables, made from 99.95% pure copper and compliant with AS/NZS 4325.1 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Double Grip Lug 300M2 Cable 12mmstd
Brand: Cabac
SKU: CAL300-12DG
Alternatively Known As: Copper Cable Lug, Double Grip Copper Lug, High Vibration Cable Lug, Crimp Copper Lug
Technical Specifications
- Conductive Material: Copper 99.95% pure, oxygen content 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature: -55°C to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Made from high conductivity 99.95% pure annealed copper
- Flared barrel crimped onto conductor insulation for high vibration resistance
- Barrels conform to normal Australian dimensions and crimped using standard Australian dies
- Electroplated with 99.9% pure tin with lead and antimony
- Operating temperature range from -55°C to 155°C
- Torque recommendations compliant with Australian and New Zealand standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician following Australian crimping standards and torque recommendations.
Applications
- High vibration and critical terminations with flexible cables
- Electrical power connectivity requiring durable cable lugs
- Suitable for use in electrical installations complying with Australian standards
Standards & Compliance
- AS/NZS 4325.1 – Copper and Copper Alloy Lugs and Connectors
Environmental Benefits
- Made from recyclable copper material
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request; standard manufacturer warranty applies.
Available Now
The Cabac Copper Double Grip Lug 300M2 Cable 12mm Standard is available for immediate purchase, ideal for electrical power connectivity applications requiring high vibration resistance.
