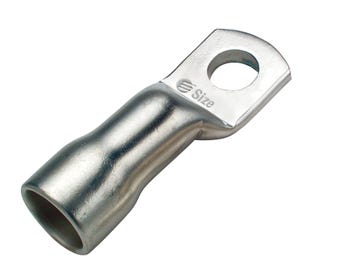

Copper Double Grip Lug 50mm Cable | 99.95% Pure Copper | High Vibration Resistance | Tin Electroplated by Cabac
The Cabac Copper Double Grip Lug 50mm Cable 12M Stud is designed for high vibration and critical terminations, made from 99.95% pure copper with a flared barrel for secure crimping on flexible cables, compliant with AS/NZS 4325.1.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

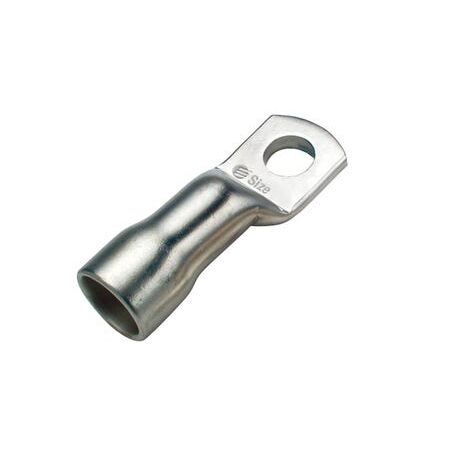

Product Name/Title: Copper Double Grip Lug 50mm Cable 12M Stud
Brand: Cabac
SKU: CAL50-12DG
Alternatively Known As: Copper Double Grip Lug, Copper Cable Lug, High Vibration Cable Lug, Crimp Copper Lug, 50mm Cable Lug
Technical Specifications
- Conductive Material: Copper 99.95% pure, oxygen content 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature: -55°C to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.05 kg
Key Features
- Made from high conductivity 99.95% pure annealed copper
- Flared barrel crimped onto conductor insulation for high vibration resistance
- Crimped using standard Australian dies compatible with CABAC, Utilux, and Burndy tooling
- Electroplated with 99.9% pure tin with lead and antimony for corrosion resistance
- Operating temperature range from -55°C to 155°C
Professional Installation Requirements
- Professional installation by qualified electricians is recommended to ensure correct crimping and compliance with Australian standards.
Applications
- High vibration and critical terminations with flexible cables
- Electrical power connectivity requiring secure cable terminations
- Suitable for use in industrial, commercial, and utility electrical installations
Standards & Compliance
- AS/NZS 4325.1 – Copper Conductors and Cable Lugs
Environmental Benefits
- Made from recyclable copper material
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request; standard manufacturer warranty applies.
Available Now
The Cabac Copper Double Grip Lug 50mm Cable 12M Stud is available for immediate purchase, ideal for electrical power connectivity applications requiring high vibration resistance.
