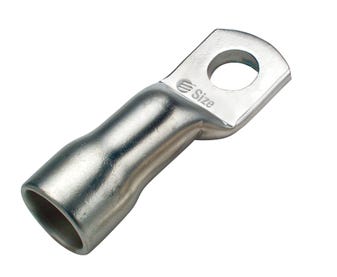

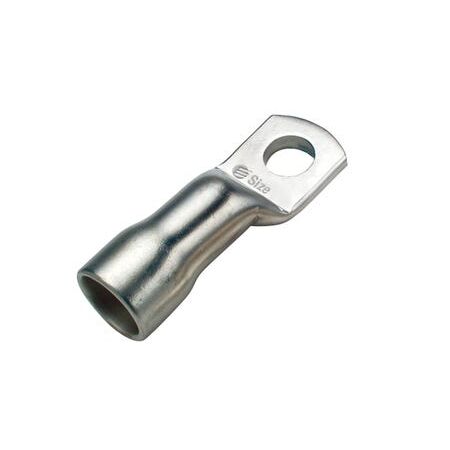

Copper Double Grip Lug 95mm² Cable 12mm Stud | High Vibration Resistance | 99.95% Pure Copper by Cabac
Cabac Copper Double Grip Lug for 95mm2 cable with 12mm stud, designed for high vibration and critical terminations, made from 99.95% pure copper with tin electroplating, compliant with AS/NZS4325 Part 1.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Double Grip Lug95mm2 Cable 12mm Stud
Brand: Cabac
SKU: CAL95-12DG
Alternatively Known As: Copper Double Grip Cable Lug, High Vibration Copper Lug, 95mm2 Copper Lug with 12mm Stud
Technical Specifications
- Nominal Cable Size: 95mm²
- Barrel Inner Diameter: 13.6mm
- Flare Inner Diameter: 17.8mm
- Stud Size: 12mm
- Conductive Material: 99.95% pure copper
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductility Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: 99.9% pure tin with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.1 kg
Key Features
- Made from high conductivity 99.95% pure annealed copper
- Flared barrel crimped onto conductor insulation for high vibration resistance
- Crimped using standard Australian dies
- Suitable for flexible cables
- Electroplated with 99.9% pure tin with lead and antimony
- Operating temperature range from -55 to 155°C
Professional Installation Requirements
- Professional installation by qualified electricians recommended to ensure proper crimping and compliance with Australian standards.
Applications
- High vibration and critical terminations with flexible cables
- Electrical power connectivity requiring secure cable terminations
- Industrial and commercial electrical installations
Standards & Compliance
- AS/NZS 4325 Part 1 – Copper and Copper Alloy Conductors
Environmental Benefits
- Made from highly conductive copper reducing energy loss
- Durable design reduces need for frequent replacements
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Copper Double Grip Lug 95mm2 Cable 12mm Stud is available for immediate purchase, ideal for high vibration electrical terminations in industrial and commercial applications.
